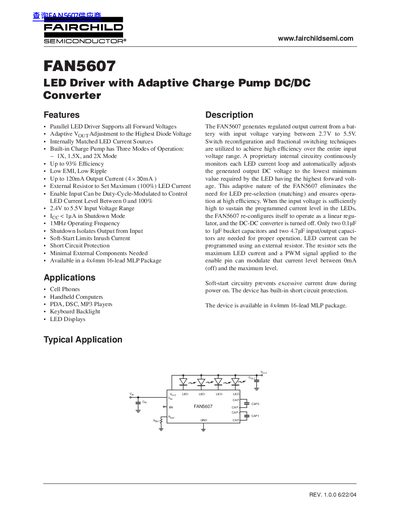

Fairchild Semiconductor FAN5607 LED Driver Datasheet
Datasheet 13 pages · 548 KB · EN
The FAN5607 is a parallel LED driver with an internally matched current source and an adaptive charge pump that supports three modes of operation: 1X, 1.5X, and 2X. It generates regulated output current from a battery with input voltages varying between 2.4V and 5.5V.
Read onlineFairchild FAN5607 specifications
| Input Voltage Range | 2.4V to 5.5V |
|---|---|
| Maximum Output Current | Up to 120mA (4 x 30mA) |
| Package Type | 4x4mm 16-lead MLP |
| Peak Efficiency | Up to 93% |
Source: Fairchild Semiconductor FAN5607 LED Driver Datasheet
All Fairchild FAN5607 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the charge pump operation modes?
The built-in charge pump has three modes of operation: 1X, 1.5X, and 2X Mode.
How is the maximum LED current set?
The maximum LED current can be programmed using an external resistor.
What is the maximum output current of the FAN5607?
The device can deliver up to 120 mA total output current (4 × 30 mA).
What input voltage range does the FAN5607 support?
It operates with an input voltage from 2.4 V to 5.5 V.
