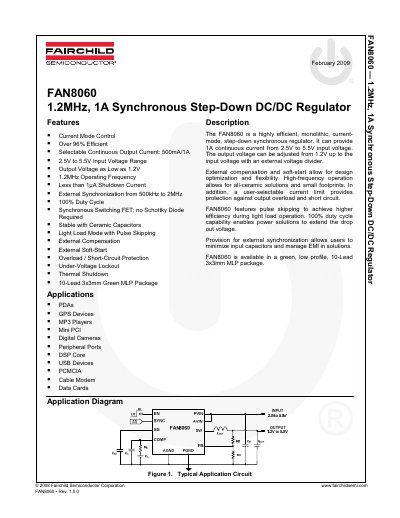

Fairchild Semiconductor FAN8060 1A Synchronous Step-Down DC/DC Regulator Datasheet
The FAN8060 is a highly efficient, monolithic, current-mode, step-down synchronous regulator designed to provide 1A continuous current from a 2.5V to 5.5V input voltage. It features a 1.2MHz operating frequency, allowing for all-ceramic solutions and small footprints, and includes external compensation and soft-start capabilities for design optimization.
Read onlineFairchild FAN8060 specifications
| Continuous Output Current | 1A |
|---|---|
| Input Voltage Range | 2.5V to 5.5V |
| Operating Frequency | 1.2MHz |
| Efficiency | Over 96% |
| Output Voltage Range | 1.2V to 5.5V |
| Package Type | 10-Lead 3x3mm MLP |
| Shutdown Current | Less than 1A |
| Duty Cycle | 100% |
Source: Fairchild Semiconductor FAN8060 1A Synchronous Step-Down DC/DC Regulator Datasheet
All Fairchild FAN8060 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the operating frequency of the FAN8060?
The FAN8060 has a typical operating frequency of 1.2MHz.
From: Fairchild Semiconductor FAN8060 1A Synchronous Step-Down DC/DC Regulator Datasheet
What is the maximum continuous output current?
The device can provide 1A continuous current.
From: Fairchild Semiconductor FAN8060 1A Synchronous Step-Down DC/DC Regulator Datasheet
What is the maximum input current limit for the USB source in this design?
The design limits the input current to 600mA to avoid overloading the USB power source.
From: Fairchild Semiconductor AN-8019 Reliable USB Modem Design Using FPF2195 and FAN8060
What are the peak current requirements for GSM and GPRS transmission?
Both GSM and GPRS systems require up to 2A of peak current during transmission.
From: Fairchild Semiconductor AN-8019 Reliable USB Modem Design Using FPF2195 and FAN8060
