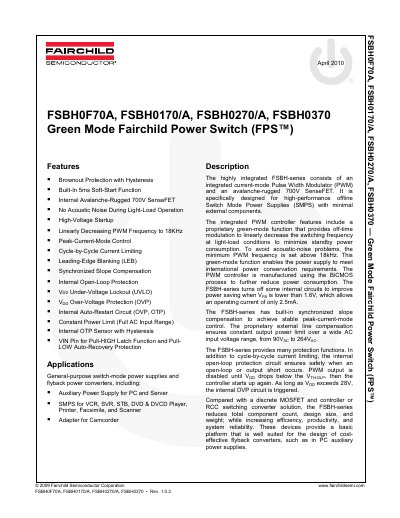

FAIRCHILD FSBH0F70A FSBH0170/A FSBH0270/A FSBH0370 Green Mode Fairchild Power Switch (FPS ) handbook
The FSBH-series consists of an integrated current-mode Pulse Width Modulator (PWM) and an avalanche-rugged 700V SenseFET. It is specifically designed for high-performance offline Switch Mode Power Supplies (SMPS) with minimal external components. The integrated PWM controller features a proprietary green-mode function that provides off-time modulation to linearly decrease the switching frequency at light-load conditions to minimize standby power consumption.
Read onlineAll Fairchild FSBH0370 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum PWM frequency?
The minimum PWM frequency is set above 18kHz to avoid acoustic-noise problems.
From: FAIRCHILD FSBH0F70A FSBH0170/A FSBH0270/A FSBH0370 Green Mode Fairchild Power Switch (FPS ) handbook
What is the typical operating current when Vrs is lower than 1.6V?
The operating current is only 2.5mA when Vrs is lower than 1.6V.
From: FAIRCHILD FSBH0F70A FSBH0170/A FSBH0270/A FSBH0370 Green Mode Fairchild Power Switch (FPS ) handbook
