Start here

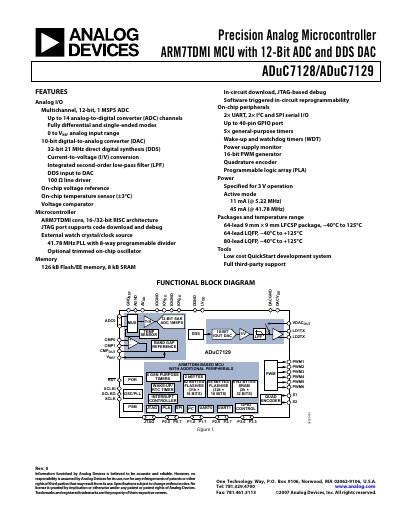

Analog Devices ADuC7128/ADuC7129 Microcontroller User Manual
The ADuC7128/ADuC7129 are fully integrated 12‑bit, 1 MSPS data‑acquisition microcontrollers that combine an ARM7TDMI core, multi‑channel ADC, DDS‑based DAC, and on‑chip Flash/EE memory. The document details the device architecture, pin functions, and electrical characteristics.
Key sections cover functional block diagrams, timing specifications, power‑supply monitoring, peripheral interfaces (UART, SPI, I²C, PWM, quadrature encoder), memory organization, and development tools. The handbook also includes design recommendations, ordering information, and mechanical dimensions.
Analog Devices ADUC7128 specifications
| ADC resolution | 12 bits |
|---|---|
| Core clock frequency | 41.78 MHz |
| Flash/EE memory size | 126 kB |
| SRAM size | 8 kB |
| Supply voltage range | 3.0 V to 3.6 V |
| Operating temperature range | -40 °C to +125 °C |
| Number of ADC channels | Up to 14 |
| Active‑mode current consumption (41.78 MHz) | 45 mA |
Source: Analog Devices ADuC7128/ADuC7129 Microcontroller User Manual
All Analog Devices ADUC7128 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the core clock frequency of the ADuC7128/ADuC7129?
The internal PLL generates a 41.78 MHz clock that can be divided to produce the MCU core clock.
From: Analog Devices ADuC7128/ADuC7129 Microcontroller User Manual
How many ADC channels does the device provide?
The microcontroller includes up to 14 single‑ended ADC channels, usable in differential or single‑ended mode.
From: Analog Devices ADuC7128/ADuC7129 Microcontroller User Manual
