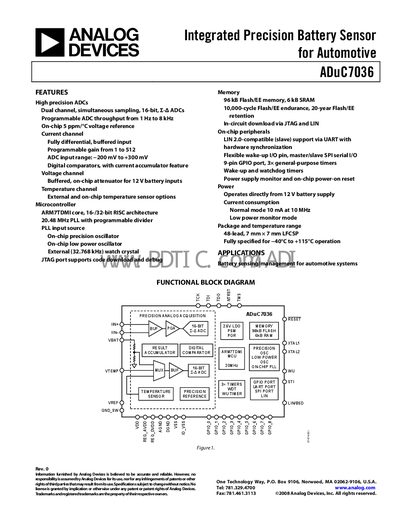

Analog Devices ADuC7036 Microcontroller Handbook
The ADuC7036 is an ARM7TDMI‑based microcontroller with integrated precision battery‑monitoring functions, dual 16‑bit ADCs, on‑chip voltage reference, and LIN 2.0 support. This handbook describes its features, electrical specifications, memory organization, and peripheral interfaces.
The document includes a functional block diagram, pin‑out descriptions, detailed ADC and LIN register tables, timing specifications, power‑supply and reset circuits, as well as programming guidelines for Flash/EE memory and peripheral configuration.
Analog Devices ADUC7036 specifications
| HBM ESD Rating | 1 kV |
|---|---|
| WU Pin Voltage Range | -3 V to +33 V |
| WU Pin Latch-up Threshold | Below -1 V |
Source: Analog Devices ADuC7036 Integrated Precision Battery Sensor Known Defects List
All Analog Devices ADUC7036 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the package materials covered by this defect list?
The list applies to all ADuC7036 package materials identified as BCPZ or CCPZ.
From: Analog Devices ADuC7036 Integrated Precision Battery Sensor Known Defects List
What is the recommended temporary solution for the WU pin latch-up issue?
ADI suggests using a protection diode, such as a BAS52, on the WU pin to avoid severe damage.
From: Analog Devices ADuC7036 Integrated Precision Battery Sensor Known Defects List
What is the operating temperature range of the ADuC7036?
The device operates from –40 °C to +115 °C.
How many flash write‑erase cycles does the ADuC7036 support?
The flash/EE memory is rated for 10,000 write‑erase cycles.
What supply voltage range does the ADuC7036 support?
The device operates with a supply voltage (VDD) from 3.5 V up to 18 V.
How much flash memory is available on the ADuC7036?
It provides 96 kB of Flash/EE memory and 6 kB of SRAM.
