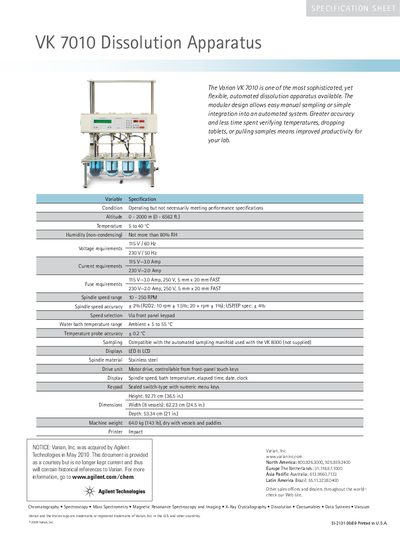

Varian VK 7010 Dissolution Apparatus Specifications
The Varian VK 7010 is a sophisticated and flexible automated dissolution apparatus designed for improved productivity in laboratory settings. Its modular design supports easy manual sampling or integration into automated systems, reducing the time spent on tasks like verifying temperatures or dropping tablets.
The document provides technical specifications for the unit, including operating conditions such as altitude, temperature, and humidity. It details electrical requirements, spindle speed ranges and accuracy, water bath capabilities, and physical dimensions. A notice clarifies that Varian, Inc. was acquired by Agilent Technologies in May 2010, indicating the document contains historical references.
Agilent VK 7010 specifications
| Altitude | 0 - 2000 m (0 - 6562 ft.) |
|---|---|
| Temperature | 5 to 40°C |
| Humidity | Not more than 80% RH |
| Voltage requirements | 115V/ 60 Hz, 230 V / 50 Hz |
| Spindle speed range | 10 - 250 RPM |
| Spindle speed accuracy | + 2% (R2D2: 10 rpm + 1.5%; 20 + rom + 1%); USP/EP spec: + 4% |
| Water bath temperature range | Ambient + 5 to 55 °C |
| Temperature probe accuracy | +0.2°C |
| Spindle material | Stainless steel |
| Height | 92.71 cm (36.5 in.) |
| Width (8 vessels) | 62.23 cm (24.5 in.) |
| Depth | 53.34 cm (21 in.) |
| Machine weight | 64.0 kg (143 Ib), dry with vessels and paddles |
All Agilent VK 7010 documents by type
Questions answered in these manuals
What is the spindle speed range of the VK 7010?
The spindle speed range is 10 to 250 RPM.
What are the voltage requirements for the apparatus?
The apparatus requires 115V/ 60 Hz or 230 V / 50 Hz.
What is the operating altitude range for the VK 7010?
The apparatus operates at altitudes from 0 to 2000 meters (0 to 6562 feet).
What are the voltage requirements for the VK 7010?
The unit requires 115V/60 Hz or 230 V/50 Hz.
