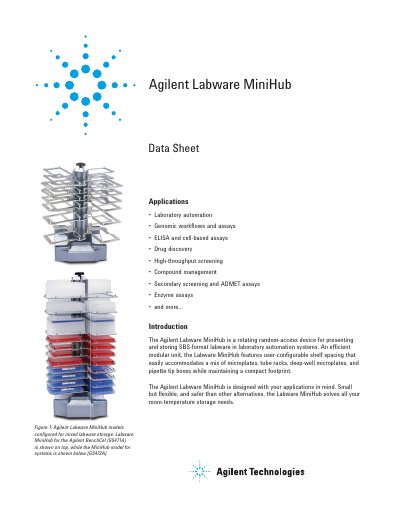

Agilent Labware MiniHub G5471A/G5472A/G5473A Data Sheet
The Agilent Labware MiniHub is a rotating random-access device designed for presenting and storing SBS-format labware in laboratory automation systems. It features user-configurable shelf spacing that accommodates a mix of microplates, tube racks, deep-well microplates, and pipette tip boxes while maintaining a compact footprint. The device is available in two main models: the G5471A for systems with extended vertical reach and the G5472A for integration with the Agilent BenchCel Microplate Handler.
Read onlineAgilent G5473A specifications
| Transfer time | < 5 seconds for longest turn |
|---|---|
| Payload (per labware) | 200 g |
| Maximum Payload | 12 800 g |
| Repeatability | ± 0.02° Phi (± 0.5 mm) |
| Weight (G5471A) | 10 kg |
| Operating temperature | 4-40°C |
| Operating humidity | 20-90% RH non-condensing |
| Computer connection | RS-232 or DB9 serial port |
Source: Agilent Labware MiniHub G5471A/G5472A/G5473A Data Sheet
All Agilent G5473A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What labware formats does the MiniHub support?
It supports SBS footprint labware including microplates, deep-well microplates, tube and vial racks, and tip boxes.
From: Agilent Labware MiniHub G5471A/G5472A/G5473A Data Sheet
Can the shelf spacing be adjusted?
Yes, the device features user-configurable shelf spacing to accommodate different labware heights.
From: Agilent Labware MiniHub G5471A/G5472A/G5473A Data Sheet
How many shelves does the G5471A model have?
The G5471A System model includes 16 shelves to accommodate a maximum of 64 microplates.
From: Agilent Labware MiniHub G5471A/G5472A/G5473A Data Sheet
What is the maximum power output of the G5473A power supply?
The G5473A power supply is able to deliver up to 175 W of continuous power to two devices.
From: Agilent Labware MiniHub G5471A/G5472A/G5473A Data Sheet
