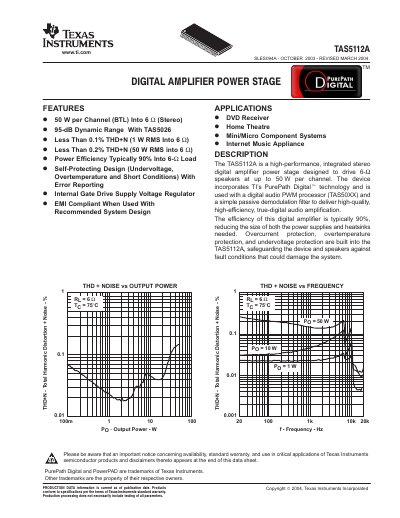

Texas Instruments TAS5112A Digital Amplifier Power Stage Datasheet
The Texas Instruments TAS5112A is a high-performance, integrated stereo digital amplifier power stage designed to drive 6-Ω speakers at up to 50W per channel. It incorporates TI's PurePath Digital™ technology and is used with a digital audio PWM processor (TAS50XX) and a simple passive demodulation filter to deliver high-quality, high-efficiency, true-digital audio amplification. The device features a self-protecting design with undervoltage, overtemperature, and short-circuit protection, as well as an internal gate drive supply voltage regulator.
Read onlineTexas Instruments TAS5112A specifications
| Output Power (BTL) | 50 W per Channel |
|---|---|
| Dynamic Range | 95-dB |
| THD+N (1 W RMS) | Less Than 0.1% |
| THD+N (50 W RMS) | Less Than 0.2% |
| Package | 56-pin TSSOP |
Source: Texas Instruments TAS5112A Digital Amplifier Power Stage Datasheet
All Texas Instruments TAS5112A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output power of the TAS5112A?
The device delivers up to 50 W per channel in BTL mode into a 6-Ω load.
From: Texas Instruments TAS5112A Digital Amplifier Power Stage Datasheet
What is the maximum output power of the TAS5112A into a 6-Ω load?
The device delivers 50 W per channel in bridge-tied load (BTL) mode into a 6-Ω load.
From: Texas Instruments TAS5112A Digital Amplifier Power Stage Datasheet
What is the maximum output power of the TAS5112A?
The device delivers up to 50 W per channel in BTL mode into a 6-Ω load.
From: Texas Instruments TAS5112A Digital Amplifier Power Stage Datasheet
Is the TAS5112A compatible with other TI processors?
Yes, it is used with a digital audio PWM processor such as the TAS50XX series.
From: Texas Instruments TAS5112A Digital Amplifier Power Stage Datasheet
