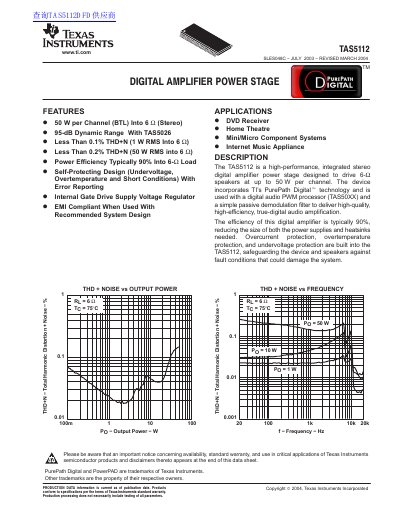

Texas Instruments TAS5112 Digital Amplifier Power Stage Datasheet
The TAS5112 is a digital amplifier power stage designed to drive 6-ohm speakers at up to 50W per channel. It incorporates Texas Instruments' PurePath Digital technology and is used with a digital audio PWM processor and a simple passive demodulation filter to deliver high-quality, high-efficiency, true-digital audio amplification. The device typically achieves 90% efficiency, which reduces the size of required power supplies and heatsinks.
Read onlineTexas Instruments TAS5112 specifications
| Output Power (BTL, 6 Ω, 10% THD) | 62 W |
|---|---|
| Signal-to-Noise Ratio | 96 dB |
| Dynamic Range | 96 dB |
| Power Efficiency | Typically 90% |
| Supply Voltage (PVDD_x) | 0 to 30.5 V |
| Digital Supply Voltage (DVDD) | 3.3 V |
| Overcurrent Protection Threshold | 5.8 A |
Source: Texas Instruments TAS5112 Digital Amplifier Power Stage Datasheet
All Texas Instruments TAS5112 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical power efficiency of the TAS5112?
The efficiency of this digital amplifier is typically 90% into a 6-ohm load.
From: Texas Instruments TAS5112 Digital Amplifier Power Stage Datasheet
What is the recommended digital supply voltage?
The recommended digital supply voltage (DVDD) is 3.3 V.
From: Texas Instruments TAS5112 Digital Amplifier Power Stage Datasheet
What is the typical efficiency of the TAS5112?
The efficiency of this digital amplifier is typically 90% into a 6-Ω load.
From: Texas Instruments TAS5112 Digital Amplifier Power Stage Datasheet
What protection features are built into the TAS5112?
The device includes undervoltage, overtemperature, and short-circuit protection to safeguard the system.
From: Texas Instruments TAS5112 Digital Amplifier Power Stage Datasheet
