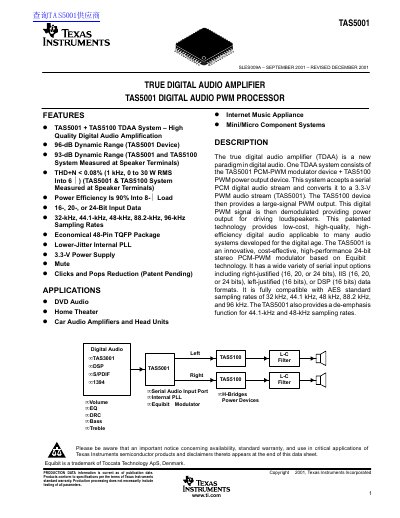

Texas Instruments TAS5001 True Digital Audio Amplifier Datasheet
The Texas Instruments TAS5001 is a 24-bit stereo PCM-PWM modulator designed as part of a True Digital Audio Amplifier (TDAA) system. It accepts serial PCM digital audio streams and converts them into a 3.3-V PWM audio stream, which drives a companion power output device to drive loudspeakers directly.
Read onlineTexas Instruments TAS5001 specifications
| Dynamic Range (Device) | 96-dB |
|---|---|
| THD+N | < 0.08% |
| Input Data Bits | 16-, 20-, or 24-Bit |
| Sampling Rates | 32-kHz, 44.1-kHz, 48-kHz, 88.2-kHz, 96-kHz |
| Package Type | 48-Pin TQFP |
| Power Supply Voltage | 3.3-V |
Source: Texas Instruments TAS5001 True Digital Audio Amplifier Datasheet
All Texas Instruments TAS5001 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the supported sampling rates for the TAS5001?
The device supports standard AES sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.
From: Texas Instruments TAS5001 True Digital Audio Amplifier Datasheet
Does the TAS5001 support double-speed operation?
Yes, it supports double speed modes for 88.2 kHz or 96 kHz sampling rates using the DBSPD pin.
From: Texas Instruments TAS5001 True Digital Audio Amplifier Datasheet
What are the supported sampling rates?
The device supports 32-kHz, 44.1-kHz, 48-kHz, 88.2-kHz, and 96-kHz sampling rates.
From: Texas Instruments TAS5001 Digital Audio PWM Processor Datasheet
What is the dynamic range of the TAS5001?
The TAS5001 device provides a 96-dB dynamic range.
From: Texas Instruments TAS5001 Digital Audio PWM Processor Datasheet
