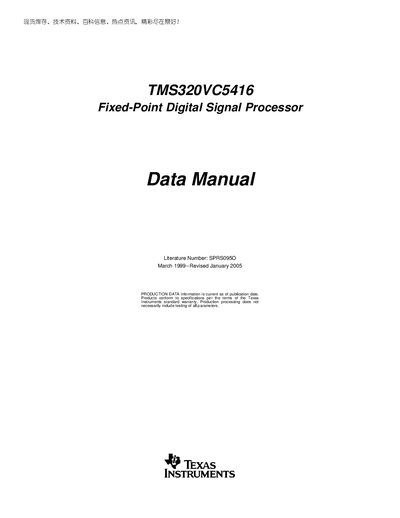

Texas Instruments TMS320VC5416 Fixed-Point Digital Signal Processor Data Manual
The TMS320VC5416 data manual provides detailed electrical specifications, memory maps, peripheral descriptions and timing parameters for the fixed‑point digital signal processor. It includes functional overviews, pin assignments for GGU and PGE packages, and mechanical data for the device.
Revision history shows the document was originally released in March 1999 and revised in January 2005. The manual also contains warranty and legal notices from Texas Instruments.
Texas Instruments TMS320VC5416 specifications
| Output current limit Igy | -8 mA |
|---|---|
| Output current limit Io | 8 mA |
| Clock options | Divide‑By‑Two and Divide‑By‑Four |
| Literature number | SPRSO0950 |
Source: Texas Instruments TMS320VC5416 Fixed-Point Digital Signal Processor Data Manual
