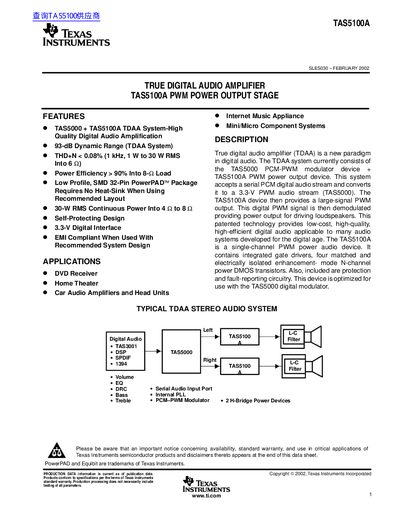

TEXAS INSTRUMENTS TAS5101 handbook(1)
The TAS5100A is a single-channel PWM power audio device designed to provide large-signal PWM output for driving loudspeakers. It contains integrated gate drivers, four matched enhancement-mode N-channel power DMOS transistors, and protection circuitry. The device is optimized for use with the TAS5000 digital modulator in True Digital Audio Amplifier (TDAA) systems.
Read onlineTexas Instruments TAS5101 specifications
| Dynamic Range | 93-dB |
|---|---|
| THD+N | < 0.08% |
| Power Efficiency | > 90% |
| Continuous Power (4Ω) | 30-W RMS |
| Digital Interface Voltage | 3.3-V |
| Package Type | 32-pin PowerPAD™ Package |
All Texas Instruments TAS5101 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for the TAS5100A?
It is optimized for use with the TAS5000 digital modulator in True Digital Audio Amplifier (TDAA) systems.
Does the TAS5100A require a heat sink?
No, it does not require a heat sink when using the recommended layout.
What is the recommended processor for use with TAS5101?
The TAS5101 is used in conjunction with a Digital Audio PWM processor (TAS50xx).
From: Texas Instruments TAS5101 True Digital Stereo Audio Amplifier Datasheet
Is the TAS5000 series recommended for use with TAS5101?
No, the TAS5000 is NOT recommended for use with the TAS5101.
From: Texas Instruments TAS5101 True Digital Stereo Audio Amplifier Datasheet
