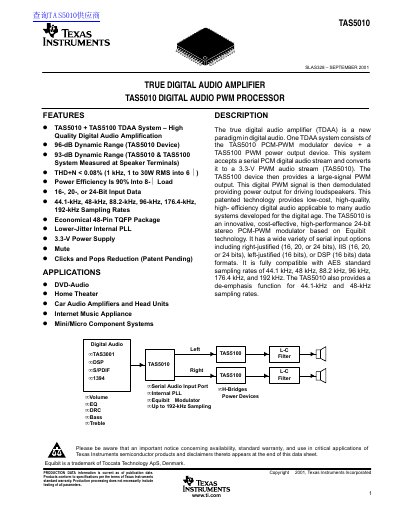

Texas Instruments TAS5010 Digital Audio PWM Processor Datasheet
The TAS5010 is a 24-bit stereo PCM-PWM modulator designed for the True Digital Audio Amplifier (TDAA) system. It accepts various serial audio input formats, including right-justified, IIS, left-justified, and DSP formats, at sampling rates from 44.1 kHz up to 192 kHz. The device operates with a 3.3-V power supply and is housed in an economical 48-pin TQFP package.
Read onlineTexas Instruments TAS5010 specifications
| Dynamic Range | 96 dB |
|---|---|
| Power Efficiency | 90% into 8-ohm load |
| Input Data Bits | 16, 20, or 24-bit |
| Package Type | 48-Pin TQFP |
| Power Supply | 3.3-V |
Source: Texas Instruments TAS5010 Digital Audio PWM Processor Datasheet
All Texas Instruments TAS5010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power supply voltage for the TAS5010?
The device operates with a 3.3-V power supply.
From: Texas Instruments TAS5010 Digital Audio PWM Processor Datasheet
What is the maximum initialization time for the TAS5010?
The initialization time is a maximum of 100 ms when RESET precedes PDN, or a maximum of 5 ms when PDN precedes RESET.
From: Texas Instruments TAS5010 Digital Audio PWM Processor Datasheet
What are the supported sampling rates for the TAS5010?
The device supports AES standard sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz.
From: Texas Instruments TAS5010 Digital Audio PWM Processor Datasheet
Does the TAS5010 support de-emphasis?
Yes, it provides a de-emphasis function specifically for 44.1-kHz and 48-kHz sampling rates.
From: Texas Instruments TAS5010 Digital Audio PWM Processor Datasheet
