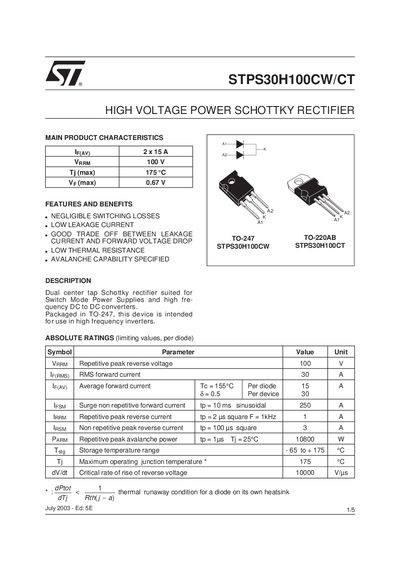

STPS30H100CW/CT is a high voltage power Schottky rectifier from STMicroelectronics. It has a rated average current of 30A and a maximum reverse peak voltage of 100V. The maximum operating temperature is 175℃. The device has features such as negligible switching losses, low leakage current, good trade-off between leakage current and forward voltage drop, low thermal resistance and avalanche capability. It is suitable for use in switch mode power supplies, high frequency DC-DC converters and high frequency inverters.
The STPS30H100CW/CT is a dual‑center‑tap high‑voltage power Schottky rectifier designed for switch‑mode power supplies and high‑frequency DC‑DC converters. It is offered in TO‑247 and TO‑220AB packages and is suitable for high‑frequency inverters.
Key electrical characteristics include a repetitive peak reverse voltage of 100 V, RMS forward current of 30 A, and a maximum junction temperature of 175 °C. The datasheet also lists thermal resistances, leakage currents, forward voltage drops, and detailed mechanical dimensions for both package types, along with recommended mounting torque values.
| Repetitive peak reverse voltage | 100 V |
|---|---|
| Maximum junction temperature | 175 °C |
| Forward voltage drop at 25°C, 15 A | 0.80 V |
The device can withstand a repetitive peak reverse voltage of 100 V.
The recommended mounting torque is 0.8 N·m.
The maximum junction temperature is 175 °C.
