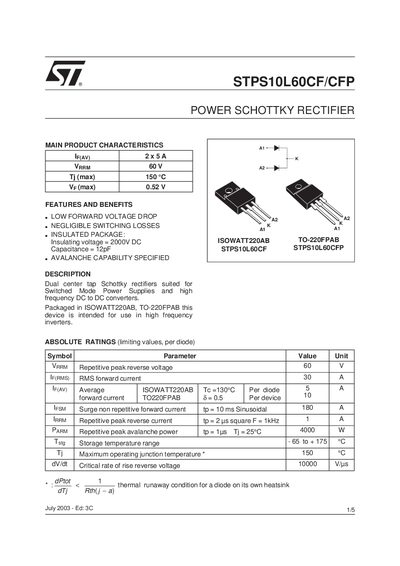

STPS10L60CF/CFP is a dual center tap Schottky rectifier that is suitable for Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in ISOWATT220AB, TO-220FPAB this device is intended for use in high frequency inverters.
The STPS10L60CF/CFP is a dual center‑tap Schottky rectifier designed for switched‑mode power supplies and high‑frequency DC‑DC converters. It is offered in ISOWATT220AB and TO‑220FPAB insulated packages and features low forward voltage drop, negligible switching losses, and avalanche capability.
Key specifications include a 60 V repetitive peak reverse voltage, 30 A RMS forward current, 5 A average forward current, and a junction‑to‑case thermal resistance of 4.5 °C/W. Mechanical data for the TO‑220FPAB package are provided, along with ordering information for tube and bulk quantities.
| Repetitive peak reverse voltage (VRRM) | 60 V |
|---|---|
| RMS forward current (IFRM) | 30 A |
| Average forward current (IFAV) | 5 A |
| Surge non‑repetitive forward current | 180 A |
| Repetitive peak avalanche power | 4000 W |
| Junction‑to‑case thermal resistance (RθJC) | 4.5 °C/W |
| Forward voltage drop at 5 A, 25 °C | 0.55 V |
| TO‑220FPAB package length (A) | 4.4–4.6 mm |
| Package weight (tube) | 2.08 g |
The device is rated for a repetitive peak reverse voltage of 60 V.
The typical forward voltage drop is 0.55 V under those conditions.
The junction‑to‑case thermal resistance is 4.5 °C/W.
It is available in insulated ISOWATT220AB and TO‑220FPAB packages.
