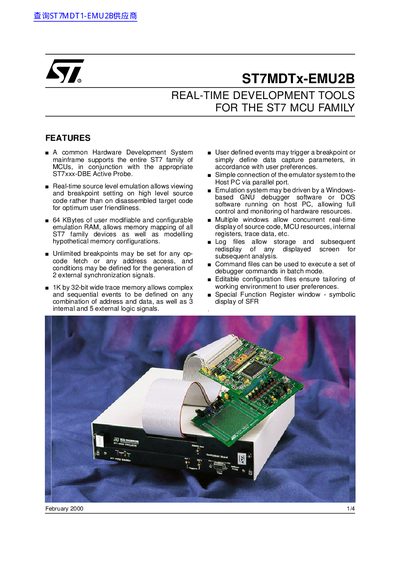

STMicroelectronics ST7MDTx-EMU2B User Manual
The ST7MDTx-EMU2B is a real‑time development system for the ST7 microcontroller family. It provides source‑level emulation, unlimited breakpoints, a 64 KB configurable emulation RAM and a 1 KB × 32‑bit trace memory, all connected to a host PC via a parallel port.
The system includes the STVD7 Windows Debugger, a DOS‑based ST7 software suite, and supports third‑party C toolchains. It can be ordered as a complete emulator or as an active probe only, and is intended for debugging and programming of ST7 devices.
STMicroelectronics ST7MDTX-EMU2B specifications
| Emulation RAM | 64 KBytes |
|---|---|
| Trace Memory | 1K by 32-bit wide |
| Internal Logic Signals | 3 |
| External Logic Signals | 5 |
Source: STMicroelectronics ST7MDTx-EMU2B Real-Time Development Tools Product Leaflet
