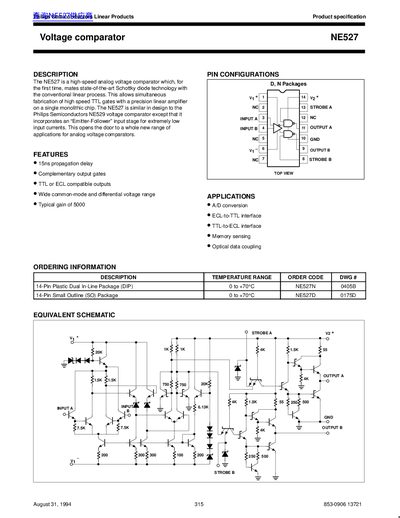

Philips Semiconductors NE527 Voltage Comparator Datasheet
The NE527 is a high-speed analog voltage comparator that combines state-of-the-art Schottky diode technology with conventional linear process. This design allows for the simultaneous fabrication of high-speed TTL gates with a precision linear amplifier on a single monolithic chip, similar to the NE529 but incorporating an Emitter-Follower input stage for extremely low input currents.
Read onlinePhilips NE527 specifications
| Propagation delay time (typical) | 15 ns |
|---|---|
| Typical gain | 5000 |
| Positive supply voltage (max) | +15 V |
| Operating temperature range | 0 to +70 °C |
| Input offset voltage (typical) | 6 mV |
Source: Philips Semiconductors NE527 Voltage Comparator Datasheet
All Philips NE527 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the main difference between the NE527 and NE529?
The NE527 incorporates an Emitter-Follower input stage for extremely low input currents.
From: Philips Semiconductors NE527 Voltage Comparator Datasheet
Is the NE527 compatible with TTL or ECL outputs?
Yes, it features complementary output gates that are TTL or ECL compatible.
From: Philips Semiconductors NE527 Voltage Comparator Datasheet
What is the propagation delay of the NE527?
The NE527 has a typical propagation delay of 15 ns.
What supply voltages does the NE527 support?
It can operate with a positive supply up to +15 V and a negative supply down to -15 V.
