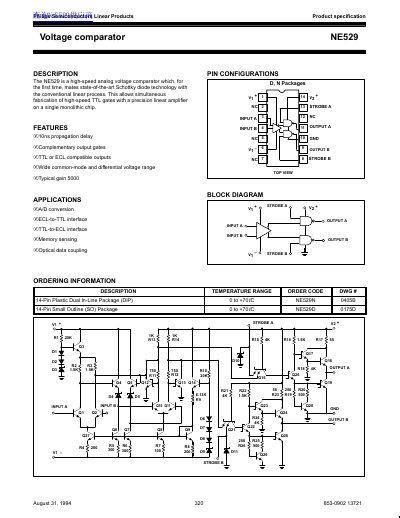

Philips NE529 Voltage Comparator Datasheet
Datasheet 5 pages · 129 KB · EN
The document describes the NE529, a high-speed analog voltage comparator that combines state-of-the-art Schottky diode technology with conventional linear processes on a single monolithic chip. Key features include a 10ns propagation delay, complementary output gates compatible with TTL or ECL logic, and a wide common-mode voltage range.
Read onlinePhilips NE529 specifications
| Propagation delay time (typ) | 10 ns |
|---|---|
| Typical gain | 5000 |
| Operating temperature range | 0 to +70 °C |
| Positive supply voltage (max) | +15 V |
| Input offset voltage (typ) | 6 mV |
All Philips NE529 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications of the NE529?
The device is suitable for A/D conversion and ECL-to-TTL interface applications.
Is the supply voltage required to be balanced?
No, one of the main features is that supply voltages need not be balanced for proper operation.
What is the propagation delay of the NE529 comparator?
The NE529 has a propagation delay of 10 ns.
What supply voltage range does the NE529 support?
It operates with a positive supply up to +15 V and a negative supply down to –15 V.
