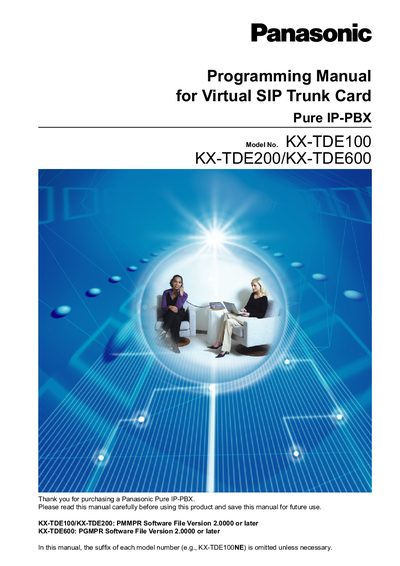

Panasonic KX-TDE100 / KX-TDE200 / KX-TDE600 Programming Manual

About this manual

This manual provides programming instructions for the Panasonic Virtual SIP Trunk Card (V‑SIPGW16) used with the Pure IP‑PBX models KX‑TDE100, KX‑TDE200, and KX‑TDE600. It describes the card’s capabilities, how to install the maintenance console, and how to configure card, shelf, and provider profiles.

The document also details network prerequisites such as required ports, firewall settings, NAT traversal options, and bandwidth calculations for different codecs and packet intervals. Guidance is given for router configuration, STUN server usage, and ensuring sufficient WAN bandwidth for reliable VoIP communication.

What's inside

• Information about IP Telephony Service
• Important Notice for Subscription and Installation
• Port Requirements
• Firewall Requirements
• Bandwidth Requirements
• Maintenance Console Operating Instructions
• Programming the V‑SIPGW16 Card
• Card Property
• Configuration Management
• Importing/Exporting Provider Profiles

Specifications

Frequently asked questions

What bandwidth is required per channel when using the G.711 codec at a 10 ms packet interval?

The V‑SIPGW16 card requires approximately 110.4 kbps per channel for G.711 at a 10 ms interval.

How many V‑SIPGW16 cards can be installed in a single PBX?

A maximum of two V‑SIPGW16 cards can be installed in the virtual trunk slots of the PBX.
