Start here

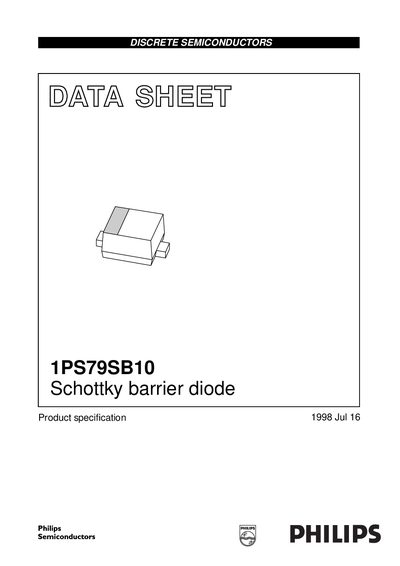

Philips 1PS79SB10 Schottky Barrier Diode Datasheet
The 1PS79SB10 is a planar Schottky barrier diode packaged in an ultra‑small SC‑79 plastic SMD case. It features low forward voltage, a guard‑ring protected structure, and a compact footprint suitable for high‑speed switching and voltage‑clamping applications.
The datasheet lists detailed electrical characteristics such as forward voltage versus current, reverse voltage rating, and leakage current, as well as thermal parameters like junction‑to‑ambient resistance and storage temperature range. It also includes graphical data, limiting values, and notes on life‑support usage restrictions.
Philips 1PS79SB10 specifications
| Forward voltage at 10 mA | 400 mV |
|---|---|
| Maximum reverse voltage (VR) | 30 V |
| Maximum continuous forward current (IF) | 200 mA |
| Storage temperature range | −65 °C to +150 °C |
All Philips 1PS79SB10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the forward voltage at 10 mA?
The forward voltage is 400 mV at 10 mA.
What is the maximum reverse voltage rating?
The diode can withstand up to 30 V reverse voltage.
