FAIRCHILD HUF75345G3 HUF75345P3 HUF75345S3S Manual

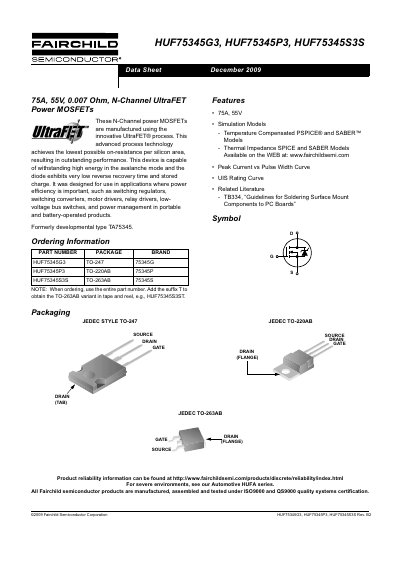

This document is a data sheet for the HUF75345 series of N-Channel Power MOSFETs manufactured by Fairchild Semiconductor. The devices utilize the UltraFET process to achieve low on-resistance and are designed for applications requiring high efficiency, such as switching regulators, converters, motor drivers, and power management in portable products.
The datasheet provides comprehensive electrical specifications including absolute maximum ratings, off-state and on-state parameters, thermal characteristics, and switching specifications. It also includes typical performance curves illustrating capabilities like peak current vs. pulse width, safe operating areas, and capacitance versus voltage.
Fairchild HUF75345G3 specifications
| Drain Current (Continuous) | 75 A |
|---|---|
| Drain to Source Voltage | 55 V |
| On Resistance (Typical) | 0.007 Ohm |
Source: FAIRCHILD HUF75345G3 HUF75345P3 HUF75345S3S handbook
All Fairchild HUF75345G3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-to-source voltage rating?
The maximum drain-to-source voltage is 55 V.
What is the maximum continuous drain current?
The device supports a continuous drain current of 75A.
What are the maximum continuous drain current and drain-to-source voltage ratings for this MOSFET?
The device is rated for a continuous drain current of 75A and a drain-to-source voltage of 55V.
