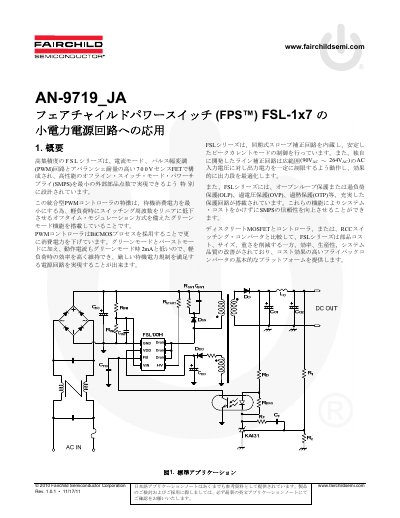

Fairchild FSL1x7 Power Switch Application for Low-Power Supplies
The document describes the Fairchild FSL series, a high-integration PWM controller designed for offline switch-mode power supplies (SMPS). Key features include a current-mode control with avalanche-rated 700V sense FBT, a Green Mode function that linearly reduces switching frequency under light loads to minimize standby power, and a proprietary line correction circuit for wide AC input ranges. This manual is written in Japanese.
Read onlineFairchild FSL1X7 specifications
| Standby current (Green Mode) | 2mA |
|---|---|
| Over-voltage protection trigger | 28V |
| Thermal shutdown threshold | 142°C |
| Over-load protection delay | 56ms |
Source: Fairchild FSL1x7 Power Switch Application for Low-Power Supplies
All Fairchild FSL1X7 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the standby current in Green Mode?
The standby current is 2mA in Green Mode.
From: Fairchild FSL1x7 Power Switch Application for Low-Power Supplies
At what voltage does the over-voltage protection trigger?
The over-voltage protection triggers when Vpp reaches 28V.
From: Fairchild FSL1x7 Power Switch Application for Low-Power Supplies
What is the typical startup current of the FSL-series?
The typical startup current is 3.5mA.
From: Applying Fairchild Power Switch FSL1x7 to Low-Power Supplies Application Note
At what voltage does the Vpp over-voltage protection trigger?
The OVP is triggered when Vpp reaches 28V.
From: Applying Fairchild Power Switch FSL1x7 to Low-Power Supplies Application Note
