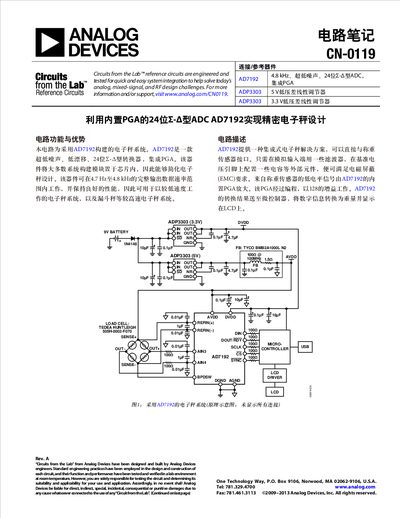

Analog Devices AD7192 Electronic Scale Circuit Application Note
The document details a reference circuit for an electronic scale system centered around the AD7192, a 24-bit sigma-delta analog-to-digital converter (ADC) with an integrated programmable gain amplifier (PGA). The design utilizes two ADP3303 low-dropout linear regulators to provide clean 5V and 3.3V power supplies for the load cell sensor and microcontroller interface, respectively.
Read onlineAnalog Devices AD7192 specifications
| RMS noise (gain = 128, 4.7 Hz) | 11 nV |
|---|---|
| Output data rate | 4.7 Hz to 4.8 kHz |
| Supply voltage (AVop) | 3 V to 5.25 V |
| Supply current | 4.35 mA |
| Package | 24‑lead TSSOP |
| Temperature range | -40 °C to +105 °C |
| Gain drift | 1 ppm/°C |
| Input channels | 2 differential / 4 pseudo‑differential |
Source: Analog Devices AD7192 Datasheet
All Analog Devices AD7192 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum tare offset magnitude relative to the load cell's full-scale output?
The tare offset can be as high as 50% of the load cell's full-scale output signal.
From: Analog Devices AD7192 Electronic Scale Circuit Application Note
What is the RMS noise of the AD7192 when the output data rate is 4.7 Hz?
The RMS noise is 11 nV at an output data rate of 4.7 Hz.
From: Analog Devices AD7192 Electronic Scale Circuit Application Note
What supply voltage range does the AD7192 support?
The AD7192 operates from 3 V to 5.25 V (AVop).
How many input channels are available?
It provides two differential or four pseudo‑differential input channels.
What is the supply voltage range for the AD7192?
The AD7192 operates from 3 V to 5.25 V.
How much current does the AD7192 draw?
It consumes about 3.5 mA of supply current.
