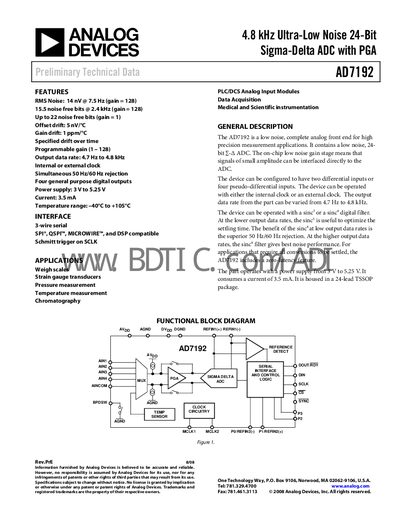

The AD7192 is a 4.8 kHz ultra-low noise 24-bit Sigma-Delta ADC with PGA.
The AD7192 is a low‑noise, 24‑bit sigma‑delta analog‑to‑digital converter with a programmable gain amplifier (1‑128). It is designed for high‑precision measurement applications such as strain‑gauge transducers, pressure, temperature, and data‑acquisition systems.
The device operates from a 3 V to 5.25 V supply, consumes 3.5 mA, and offers an output data rate from 4.7 Hz to 4.8 kHz. It features a 3‑wire serial interface compatible with SPI®, QSPI™, and MICROWIRE™, four general‑purpose digital outputs, and extensive timing and register specifications for flexible integration.
| RMS Noise | 14 nV @ 7.5 Hz (gain = 128) |
|---|---|
| Power Supply Voltage | 3 V to 5.25 V |
| Supply Current | 3.5 mA |
| Output Data Rate | 4.7 Hz to 4.8 kHz |
| Operating Temperature Range | -40 °C to +105 °C |
| Gain Drift | 1 ppm/°C |
| Offset Drift | 5 nV/°C |
| Digital Outputs | Four general‑purpose pins |
| Interface | 3‑wire serial (SPI®, QSPI™, MICROWIRE™) |
The AD7192 operates from 3 V to 5.25 V.
It consumes about 3.5 mA of supply current.
The output data rate can be set between 4.7 Hz and 4.8 kHz.
The AD7192 provides four general‑purpose digital output pins.
