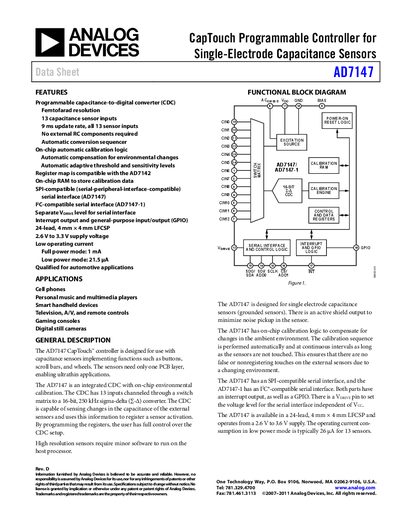

Analog Devices AD7147 Product Handbook Rev D
The AD7147 CapTouch programmable controller is a capacitance‑to‑digital converter designed for single‑electrode sensors. It offers 13 sensor inputs, femtofarad resolution, on‑chip automatic calibration, and an active shield to reduce noise, enabling ultrathin PCB implementations.
The handbook includes full electrical specifications, SPI and PC‑compatible timing diagrams, absolute maximum ratings, ESD precautions, and application notes for automotive, mobile phones, multimedia players, and other consumer electronics.
Analog Devices AD7147 specifications
| Supply Voltage (Vcc) | 2.6 V to 3.6 V |
|---|---|
| Update Rate (decimation 64) | 8.73 ms |
| Resolution | 16 Bits |
| Capacitance Sensor Inputs | 13 |
| Low Power Mode Current | ≈26 µA |
| Operating Temperature Range | -40°C to +85°C |
| Maximum Output Load | 150 pF |
