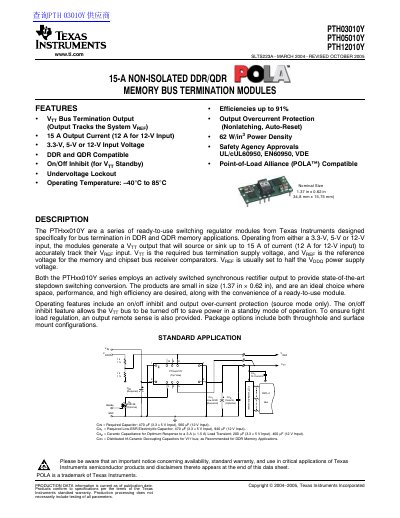

TEXAS INSTRUMENTS PTH03010Y PTH05010Y PTH12010Y handbook
The PTHxx010Y series consists of ready-to-use switching regulator modules from Texas Instruments specifically designed for bus termination in DDR and QDR memory applications. Operating from 3.3-V, 5-V, or 12-V inputs, these modules generate a Vref output that sources or sinks up to 15 A of current (12 A for 12-V input) to accurately track the input voltage. The products feature an actively switched synchronous rectifier output, providing high efficiency and compact size suitable for space-constrained applications.
Read onlineTexas Instruments PTH12010Y specifications
| Output Current | 15 A (12 A for 12-V input) |
|---|---|
| Input Voltage Range | 3.3 V, 5 V, or 12 V |
| Efficiency | Up to 91% |
| Operating Temperature | -40°C to 85°C |
| Power Density | 62 W/in³ |
Source: TEXAS INSTRUMENTS PTH03010Y PTH05010Y PTH12010Y handbook
All Texas Instruments PTH12010Y documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for these modules?
They are designed specifically for bus termination in DDR and QDR memory applications.
From: TEXAS INSTRUMENTS PTH03010Y PTH05010Y PTH12010Y handbook
Can the output be turned off for standby mode?
Yes, the module includes an on/off inhibit feature to turn off the bus for power saving.
From: TEXAS INSTRUMENTS PTH03010Y PTH05010Y PTH12010Y handbook
What is the maximum output current for a 12-V input?
The module sources or sinks up to 12 A of current when using a 12-V input.
From: TEXAS INSTRUMENTS PTH03010Y PTH05010Y PTH12010Y datasheet
What is the maximum output current for these modules?
The modules can source or sink up to 15 A of current, except for the 12-V input version which provides 12 A.
From: TEXAS INSTRUMENTS PTH03010Y PTH05010Y PTH12010Y datasheet
