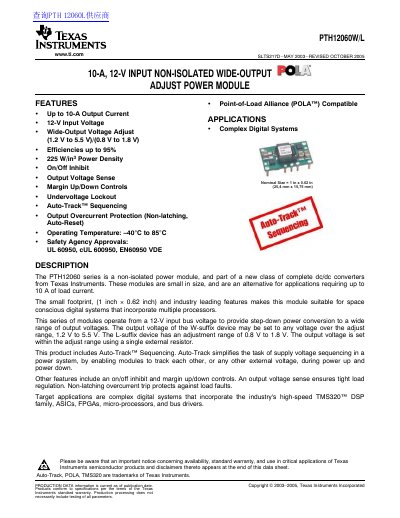

Texas Instruments PTH12060W/L 10-A Power Module Datasheet
The PTH12060 series is a non-isolated power module designed for complex digital systems requiring up to 10 A of load current. These modules operate from a 12-V input bus voltage to provide step-down power conversion to a wide range of output voltages, adjustable via a single external resistor. Key features include Auto-Track™ Sequencing, On/Off Inhibit, and Output Overcurrent Protection.
Read onlineTexas Instruments PTH12060W specifications
| Output Current | Up to 10 A |
|---|---|
| Input Voltage | 12 V |
| Output Voltage Range (W) | 1.2 V to 5.5 V |
| Output Voltage Range (L) | 0.8 V to 1.8 V |
| Efficiency | Up to 95% |
| Operating Temperature | -40°C to 85°C |
| Switching Frequency | 200 to 400 kHz |
| Weight | 5 grams |
Source: Texas Instruments PTH12060W/L 10-A Power Module Datasheet
All Texas Instruments PTH12060W documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output voltage adjustment range for the W suffix?
The W-suffix device may be set to any voltage over the adjust range of 1.2 V to 5.5 V.
From: Texas Instruments PTH12060W/L 10-A Power Module Datasheet
What is the output voltage adjustment range for the L suffix?
The L-suffix device has an adjustment range of 0.8 V to 1.8 V.
From: Texas Instruments PTH12060W/L 10-A Power Module Datasheet
What is the output voltage adjust range for the W-suffix device?
The output voltage can be set to any voltage over the adjust range of 1.2 V to 5.5 V.
From: Texas Instruments PTH12060W/L 10-A Power Module Datasheet
What is the output voltage adjust range for the L-suffix device?
The L-suffix device has an adjustment range of 0.8 V to 1.8 V.
From: Texas Instruments PTH12060W/L 10-A Power Module Datasheet
What is the output voltage adjust range for the W suffix device?
The output voltage can be set anywhere between 1.2 V and 5.5 V.
From: TEXAS INSTRUMENTS PTH12060W/L 10-A 12-V INPUT NON-ISOLATED WIDE-OUTPUT ADJUST POWER MODULE handbook
What is the output voltage adjust range for the L suffix device?
The output voltage can be set anywhere between 0.8 V and 1.8 V.
From: TEXAS INSTRUMENTS PTH12060W/L 10-A 12-V INPUT NON-ISOLATED WIDE-OUTPUT ADJUST POWER MODULE handbook
