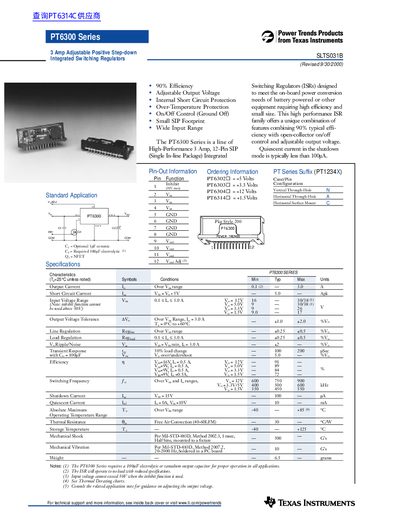

Texas Instruments PT6300 Series Integrated Switching Regulator Datasheet
The PT6300 Series consists of control and adjustable output voltage High-Performance 3 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulators. These devices are designed for battery-powered or other equipment requiring high efficiency and a small size, offering features such as internal short circuit protection, over-temperature protection, and on/off control.
Read onlineTexas Instruments PT6300 specifications
| Output Current | 3.0 A |
|---|---|
| Input Voltage Range | 9 — 38 V |
| Efficiency | Up to 91% |
| Switching Frequency | 400 — 900 kHz |
| Operating Temperature Range | -40 to +85 °C |
Source: Texas Instruments PT6300 Series Integrated Switching Regulator Datasheet
All Texas Instruments PT6300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Texas Instruments PT6300 Series Integrated Switching Regulator Datasheet 7 p
- Texas Instruments PT6300 Series 3 Amp Adjustable Positive Step-down Integrated Switching Regulators Datasheet 8 p
- Texas Instruments PT6300 Series 3 Amp Adjustable Positive Step-down Integrated Switching Regulators Datasheet 6 p
Questions answered in these manuals
What capacitor is required for proper operation?
The PT6300 Series requires a 100uF electrolytic or tantalum output capacitor.
From: Texas Instruments PT6300 Series Integrated Switching Regulator Datasheet
What is the maximum output current for the PT6300 Series?
The device provides an output current of up to 3.0 A over the input voltage range.
From: Texas Instruments PT6300 Series Integrated Switching Regulator Datasheet
What is the typical efficiency of the PT6300 Series?
The typical efficiency is 90%.
How can the output voltage be adjusted?
The output voltage can be adjusted higher or lower by adding a single external resistor.
What is the typical efficiency of the PT6300 Series?
The typical efficiency is 90%.
What package style is used for the PT6300 Series?
The devices use a 12-Pin SIP (Single In-line Package).
