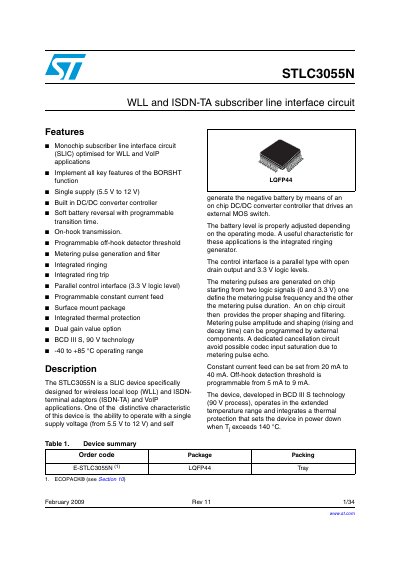

STMicroelectronics STLC3055N SLIC Datasheet
The STLC3055N is a single-chip Subscriber Line Interface Circuit (SLIC) designed specifically for Wireless Local Loop (WLL), Voice over IP (VoIP), and ISDN Terminal Adaptor (ISDN-TA) applications. The device implements all key features of the BORSHT function, including battery reversal with programmable transition time, on-hook transmission, off-hook detection, metering pulse generation, and integrated ringing.
Read onlineSTMicroelectronics STLC3055N specifications
| Supply Voltage Range | 5.5 V to +12 V |
|---|---|
| Operating Temperature | -40 to +85 °C |
| Max Junction Temperature | 150 °C |
All STMicroelectronics STLC3055N documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the STLC3055N optimized for?
It is a monochip subscriber line interface circuit (SLIC) optimised for WLL and VoIP applications.
What is the logic level for the control interface?
The parallel control interface operates at 3.3 V logic levels.
What is the STLC3055N designed for?
It is specially designed for WLL (Wireless Local Loop) and ISDN Terminal Adapters.
Can the STLC3055N generate a ring signal?
Yes, it can generate a ring signal with a trapezoidal waveform.
