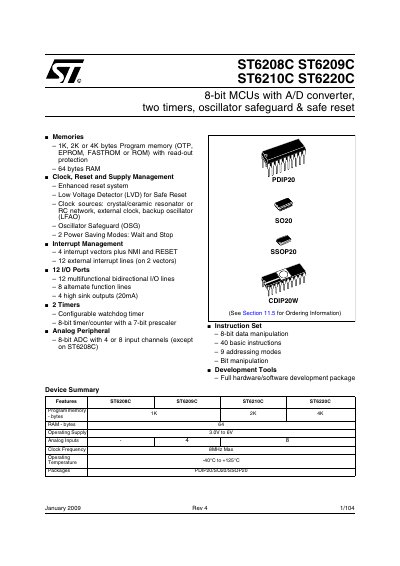

STMicroelectronics ST6208C/ST6209C/ST6210C/ST6220C 8-bit MCU Datasheet
This document is a technical datasheet for the ST6208C, ST6209C, ST6210C, and ST6220C devices, which are low-cost members of the ST62xx 8-bit HCMOS family of microcontrollers. These devices are designed for low to medium complexity applications and feature a common core surrounded by on-chip peripherals.
Read onlineSTMicroelectronics ST6210 specifications
| Program memory | 1K, 2K or 4K bytes |
|---|---|
| RAM | 64 bytes |
| Operating Supply | 3.0V to 6V |
| Clock Frequency | 8MHz Max |
| Operating Temperature | -40°C to +125°C |
| I/O Ports | 12 multifunctional bidirectional I/O lines |
| Timers | 2 Timers |
| Analog Peripheral | 8-bit ADC with 4 or 8 input channels |
Source: STMicroelectronics ST6208C/ST6209C/ST6210C/ST6220C 8-bit MCU Datasheet
All STMicroelectronics ST6210 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What are the available memory sizes for these MCUs?
The devices offer 1K, 2K, or 4K bytes of program memory.
From: STMicroelectronics ST6208C/ST6209C/ST6210C/ST6220C 8-bit MCU Datasheet
What is the operating voltage range?
The operating supply voltage ranges from 3.0V to 6V.
From: STMicroelectronics ST6208C/ST6209C/ST6210C/ST6220C 8-bit MCU Datasheet
What is the specific microcontroller model presented in this application note?
The document presents the ST6210 as the microcontroller designed for noisy environments.
From: Designing with Microcontrollers in Noisy Environments Application Note AN435/0894
What capacitance range is recommended for high frequency supply decoupling?
A ceramic capacitance of 0.1mF to 1mF should be used for critical chips operating at high frequency.
From: Designing with Microcontrollers in Noisy Environments Application Note AN435/0894
What are the major noise receptors and generators in an MCU design?
The major noise receptors and generators are the tracks and wiring on the Printed Circuit Board (PCB), especially those near the MCU.
From: STMicroelectronics AN435/0894 Designing with Microcontrollers in Noisy Environments
How can the inductance of a track be reduced?
Inductance can be reduced by making the lengths and surfaces of the track smaller, such as placing track loops closer on the same PCB layer or on top of one another.
From: STMicroelectronics AN435/0894 Designing with Microcontrollers in Noisy Environments
