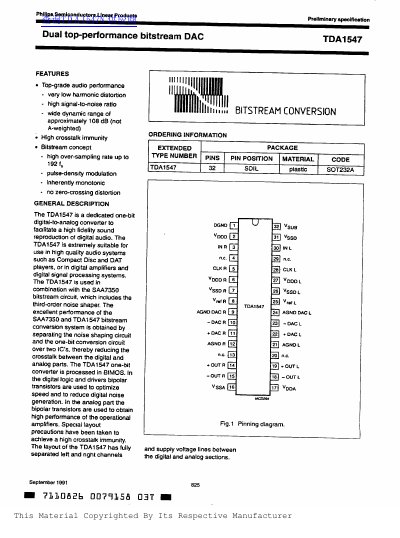

Philips TDA1547 Dual Top-Performance Bitstream DAC Preliminary Specification
The Philips TDA1547 is a dedicated one-bit digital-to-analog converter designed to facilitate high-fidelity sound reproduction in digital audio systems such as CD and DAT players, digital amplifiers, and digital signal processing systems. It is used in combination with the SAA7350 bitstream circuit to separate noise shaping from the one-bit conversion circuit, thereby reducing crosstalk between digital and analog parts. The device features a wide dynamic range of approximately 108 dB and high crosstalk immunity.
Read onlinePhilips TDA1547 specifications
| Dynamic Range | approximately 108 dB (not A-weighted) |
|---|---|
| Clock Frequency | 10 MHz |
| Total Power Dissipation | 800 mW |
| Supply Voltage (Digital) | 4.5 to 5.5 V |
| Supply Voltage (Analog) | ±6.0 V |
Source: Philips TDA1547 Dual Top-Performance Bitstream DAC Preliminary Specification
All Philips TDA1547 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the TDA1547 used for?
It is suitable for use in high quality audio systems such as Compact Disc and DAT players, or in digital amplifiers and digital signal processing systems.
From: Philips TDA1547 Dual Top-Performance Bitstream DAC Preliminary Specification
How does the TDA1547 reduce crosstalk?
It is used in combination with the SAA7350 bitstream circuit, which separates the noise shaping circuit and the one-bit conversion circuit over two chips.
From: Philips TDA1547 Dual Top-Performance Bitstream DAC Preliminary Specification
What is the maximum clock frequency for the TDA1547?
The maximum clock frequency is 10 MHz.
From: Philips TDA1547 Dual Top-Performance Bitstream DAC Data Sheet
Is the TDA1547 suitable for CD players?
Yes, it is extremely suitable for use in high quality audio systems such as Compact Disc and DAT players.
From: Philips TDA1547 Dual Top-Performance Bitstream DAC Data Sheet
