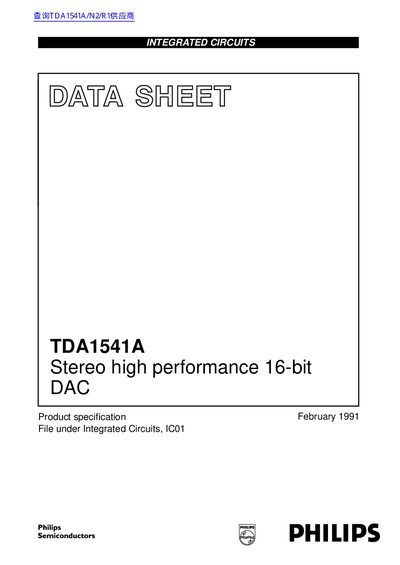

Philips TDA1541A Stereo High Performance 16-bit DAC Datasheet
This document is a product specification sheet for the TDA1541A, a stereo 16-bit digital-to-analog converter (DAC) designed for high-performance audio applications. It details features such as high sound quality, low noise and distortion, and wide dynamic range, making it suitable for top-end hi-fi digital audio equipment like Compact Disc players.
Read onlinePhilips TDA1541A specifications
| Resolution | 16 bits |
|---|---|
| Supply Voltage (VDD) | 4.5 to 5.5 V |
| Supply Voltage (-VDD2) | 14.0 to 16.0 V |
| Operating Temperature | -40 to +85 °C |
| Total Power Dissipation | 700 mW |
| Signal-to-Noise Ratio (Full Scale) | 98 to 104 dB |
Source: Philips TDA1541A Stereo High Performance 16-bit DAC Datasheet
All Philips TDA1541A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input bit rate for the TDA1541A?
The maximum input bit rate is 6.4 Mbits/s.
From: Philips TDA1541A Stereo High Performance 16-bit DAC Datasheet
Is the TDA1541A compatible with TTL inputs?
Yes, all digital inputs are TTL compatible.
From: Philips TDA1541A Stereo High Performance 16-bit DAC Datasheet
What is the maximum bit rate for data input?
The maximum bit rate for the data input pins is 6.4 Mbits/s.
From: Philips TDA1541A Stereo High Performance 16-bit DAC Data Sheet
Is the TDA1541A compatible with TTL logic?
Yes, all digital inputs of the device are TTL compatible.
From: Philips TDA1541A Stereo High Performance 16-bit DAC Data Sheet
