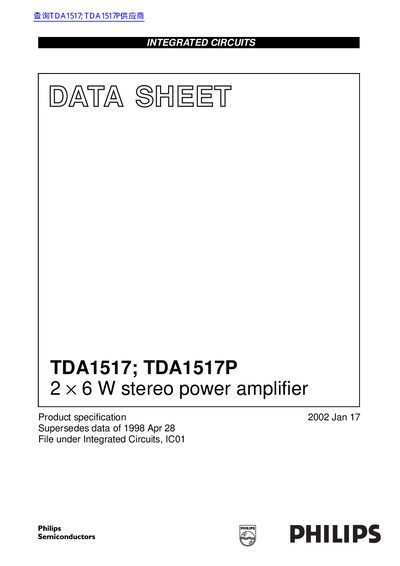

Philips TDA1517/TDA1517P Stereo Power Amplifier Datasheet
The document is a datasheet for the Philips TDA1517 and TDA1517P, which are 2 x 6 W stereo power amplifiers designed primarily for multi-media applications. The devices feature fixed gain, require very few external components, and include a mute/standby switch.
Read onlinePhilips TDA1517 specifications
| Output Power (THD=0.5%) | 4-5 W |
|---|---|
| Output Power (THD=10%) | 6 W |
| Supply Voltage Range | 6.0 to 18 V |
| Total Harmonic Distortion (THD) | 0.1% to 10% |
| Closed Loop Voltage Gain | 20 dB |
| Channel Separation | 40 dB |
Source: Philips TDA1517/TDA1517P Stereo Power Amplifier Datasheet
All Philips TDA1517 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for this amplifier?
The device is primarily developed for multi-media applications.
From: Philips TDA1517/TDA1517P Stereo Power Amplifier Datasheet
Does the TDA1517 have a mute or standby function?
Yes, it features a mute/standby switch with low standby current.
From: Philips TDA1517/TDA1517P Stereo Power Amplifier Datasheet
What is the typical closed loop voltage gain?
The typical closed loop voltage gain is 20 dB.
From: Philips TDA1517/TDA1517P Stereo Power Amplifier Datasheet
Is the device protected against short circuits?
Yes, it is AC and DC short-circuit safe to ground and Vp.
From: Philips TDA1517/TDA1517P Stereo Power Amplifier Datasheet
