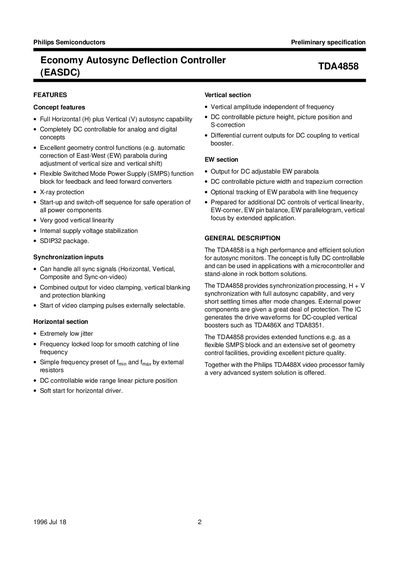

Philips TDA4858 Economy Autosync Deflection Controller (EASDC) Datasheet
The TDA4858 is a high‑performance autosync deflection controller designed for video monitors. It provides full horizontal and vertical autosync, extensive geometry‑control functions, and a flexible switched‑mode power‑supply block. The device is fully DC‑controllable and includes X‑ray protection and a safe start‑up/shut‑down sequence for all power components.
The datasheet details the pin configuration, electrical specifications, functional blocks such as the frequency‑locked loop, PLL detectors, and video‑clamping generator. It also describes package dimensions (SDIP‑32) and soldering recommendations for reliable mounting.
Philips TDA4858 specifications
| Supply voltage (Voc) | 9.2 V – 16 V |
|---|---|
| Supply current (Icc) | 49 mA |
| Horizontal shift adjustment range (AHPOS) | - to +10.5 % |
| Vertical size adjustment range (AVAMP) | 60 % – 100 % |
| Vertical shift adjustment range (AVPOS) | - to +411.5 % |
| Operating ambient temperature (Tamb) | 0 °C – 70 °C |
Source: Philips TDA4858 Economy Autosync Deflection Controller (EASDC) Datasheet
All Philips TDA4858 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the TDA4858 require?
The device operates from 9.2 V up to 16 V.
From: Philips TDA4858 Economy Autosync Deflection Controller (EASDC) Datasheet
What does the CLBL pin output?
CLBL provides a two‑level video‑clamping/vertical‑blanking pulse suitable for video ICs.
From: Philips TDA4858 Economy Autosync Deflection Controller (EASDC) Datasheet
What package does the TDA4858 use?
It is supplied in an SDIP32 plastic shrink dual in‑line package with 32 leads.
From: Philips TDA4858 Economy Autosync Deflection Controller Data Sheet
How does the X‑ray protection function work?
The XRAY pin provides a voltage detector that triggers a protection mode when the input voltage exceeds a set threshold.
From: Philips TDA4858 Economy Autosync Deflection Controller Data Sheet
