Start here

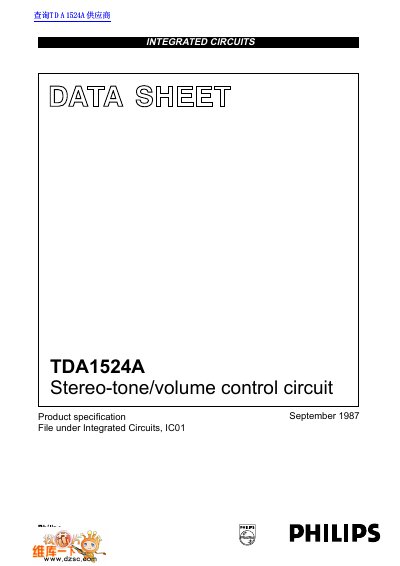

Philips TDA1524A Stereo-tone/Volume Control Circuit Datasheet
The Philips TDA1524A is an integrated circuit designed as an active stereo-tone and volume control circuit. It is intended for use in car radios, TV receivers, and mains-fed equipment. The device provides functions for bass and treble control, volume control with a built-in contour that can be switched off, and balance control. These functions can be controlled by d.c. voltages or by single linear potentiometers.
Read onlinePhilips TDA1524A specifications
| Supply voltage range | 7.5 to 16.5 V |
|---|---|
| Supply current (typical at 12V) | 35 mA |
| Volume control range | -80 to +21.5 dB |
| Bass control range at 40 Hz | -19 to +17 dB |
| Treble control range at 16 kHz | +15 dB |
| Total harmonic distortion (typical) | 0.3 % |
| Operating ambient temperature range | -30 to +80 °C |
| Package type | 18-lead DIL; plastic (SOT102) |
Source: Philips TDA1524A Stereo-tone/Volume Control Circuit Datasheet
All Philips TDA1524A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage?
The maximum supply voltage is 20 V.
From: Philips TDA1524A Stereo-tone/Volume Control Circuit Datasheet
What is the typical output noise voltage at 12V supply?
The typical output noise voltage is 310 nV (unweighted, r.m.s. value) for maximum voltage gain.
From: Philips TDA1524A Stereo-tone/Volume Control Circuit Datasheet
What is the maximum supply voltage?
The maximum supply voltage is 20 V.
From: Philips TDA1524A Stereo-tone/Volume Control Circuit Datasheet
Can the bass and treble controls be switched off?
Yes, the bass and treble controls can be switched off.
From: Philips TDA1524A Stereo-tone/Volume Control Circuit Datasheet
