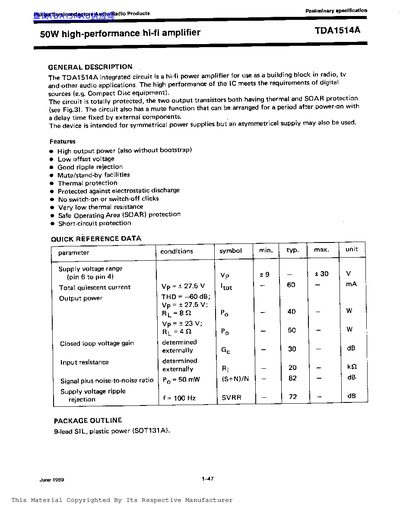

Philips TDA1514A Hi-Fi Amplifier Preliminary Specification Datasheet
The document is a preliminary specification sheet for the TDA1514A, an integrated circuit designed as a building block for radio, TV, and other audio applications. It features high output power (up to 50W), low offset voltage, and comprehensive protection mechanisms including thermal, SOAR (Safe Operating Area), and short-circuit protection.
Read onlinePhilips TDA1514A specifications
| Output Power (THD = -60dB, RL=4Ω) | 50 W |
|---|---|
| Supply Voltage Range | +9 to +30 V |
| Total Quiescent Current | 60 mA |
| Signal-to-Noise Ratio (Po = 50 mW) | 82 dB |
| Supply Voltage Ripple Rejection (100 Hz) | 72 dB |
| Package Type | Q-lead SIL, plastic power (SOT131A) |
Source: Philips TDA1514A Hi-Fi Amplifier Preliminary Specification Datasheet
All Philips TDA1514A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current?
The maximum peak output current is 8 A.
From: Philips TDA1514A Hi-Fi Amplifier Preliminary Specification Datasheet
Does the device have thermal protection?
Yes, the circuit has thermal protection and Safe Operating Area (SOAR) protection for both output transistors.
From: Philips TDA1514A Hi-Fi Amplifier Preliminary Specification Datasheet
What is the maximum output power of the TDA1514A?
The device can deliver 50W with a supply voltage of +23V and a load resistance of 4Ω.
Does the TDA1514A include thermal protection?
Yes, the circuit has thermal protection on both output transistors.
