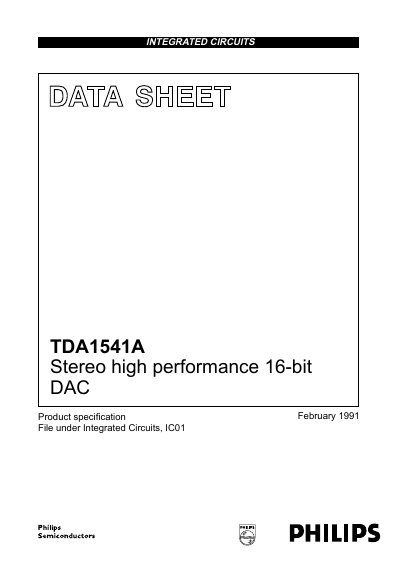

TDA1541A is a 16-bit digital-to-analog converter (DAC) produced by Philips Semiconductors. It has high sound quality, high performance, low noise and distortion, wide dynamic range, 4× or 8× oversampling, selectable two-channel input format and TTL compatible inputs.
The Philips TDA1541A is a stereo 16-bit digital-to-analog converter designed to provide high sound quality with low noise and distortion. It is specifically engineered for use in top-end hi-fi equipment, such as Compact Disc players and digital amplifiers.
The device supports selectable two-channel input formats, including time multiplexed and simultaneous modes, allowing for 4x or 8x oversampling. It features TTL compatible inputs and operates with a supply voltage range of +5V/-15V.
| Resolution | 16 bits |
|---|---|
| Total Harmonic Distortion (THD) at 0 dB | -95 to -90 dB |
| Signal-to-Noise Ratio (S/N) at full scale | 98 to 104 dB |
| Operating Ambient Temperature Range | -40 to +85 °C |
| Supply Voltage (Vop) | +5 V |
The maximum bit rate for the data input pins is 6.4 Mbits/s.
Yes, all digital inputs of the device are TTL compatible.
