TDA1517 and TDA1517P are Philips integrated class-B dual output amplifiers with plastic single in-line medium power package and plastic heat-dissipating dual in-line package.

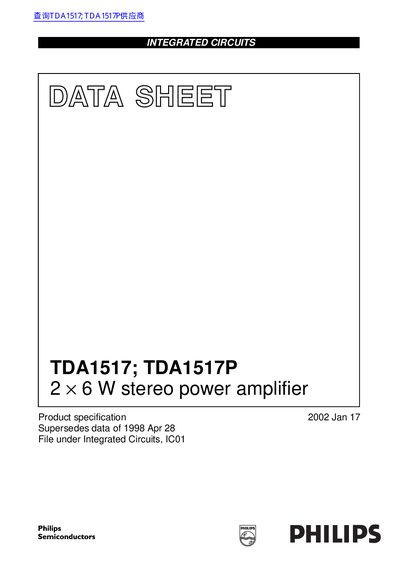

The document is a product specification sheet for the TDA1517 and TDA1517P, which are 2 x 6 W stereo power amplifiers designed primarily for multi-media applications. The devices feature fixed gain, require very few external components, and include safety features such as AC/DC short-circuit protection to ground and Vp, thermal protection, and reverse polarity safety.
| Output Power (THD=0.5%) | 5 W per channel |
|---|---|
| Output Power (THD=10%) | 6 W per channel |
| Supply Voltage Range | 6.0 to 18 V |
| Total Harmonic Distortion (THD) | Typically 20 dB gain, low distortion |
| Quiescent Current | 40 to 80 mA |
The typical closed loop voltage gain is 20 dB.
Yes, it is AC and DC short-circuit safe to ground and Vp.
