Start here

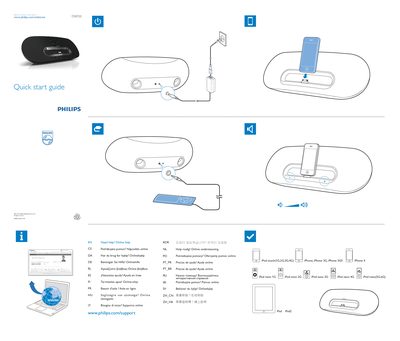

Philips DS8530 Quick Start Guide
This guide introduces the Philips DS8530 amplifier and explains how to get it up and running quickly. It includes multilingual safety instructions that must be read before first use, as well as a brief overview of the device’s main functions and connections.
The document also lists the main technical data such as a 15 W RMS output power, 80 dB signal‑to‑noise ratio, 0.6 V RMS AUX input, and power consumption under 28 W in operation and under 1 W in Eco‑standby. Physical dimensions are 430 × 155 × 132 mm and the unit weighs 2.01 kg.
Philips DS8530 specifications
| Nominal Output Power | 15 W RMS |
|---|---|
| AUX IN Input | 0.6 V RMS, 10 kΩ |
| Input Voltage | 100‑240 V~, 50/60 Hz, 1.54 A |
| Output Voltage | 18 V, 3.5 A |
| Operating Power Consumption | < 28 W |
| Eco‑Standby Power Consumption | < 1 W |
| Dimensions (Main Unit) | 430 × 155 × 132 mm |
| Weight (Main Unit) | 2.01 kg |
Source: Philips DS8530 Quick Start Guide
All Philips DS8530 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What safety information should be read before using the DS8530?
The guide advises to read all accompanying safety information in the language of your choice before using the product.
What is the nominal output power of the DS8530 amplifier?
The amplifier delivers a nominal output power of 15 W RMS.
