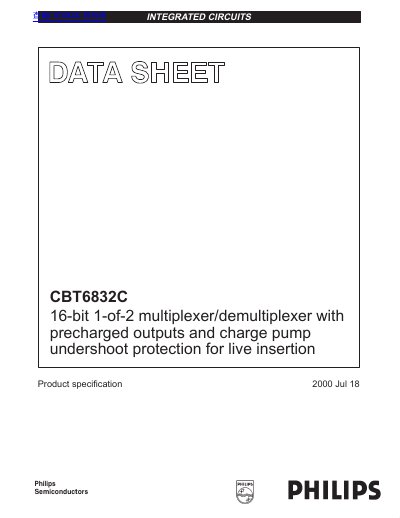

This document describes the features and characteristics of the CBT6832C 16-bit 1-of-2 multiplexer/demultiplexer with precharged outputs and charge pump undershoot protection for live insertion.
The Philips CBT6832C is a 16-bit 1-of-2 multiplexer/demultiplexer designed for live insertion applications, such as PCI hot-plugging. It features precharged outputs and charge pump undershoot protection to ensure reliable operation during channel switching.
Key characteristics include a propagation delay of 250 ps, low capacitance, and a controlled enable rate. The device operates with a supply voltage range of +4.5 V to +5.5 V and is available in a 56-pin TSSOP package.
| Propagation delay (tpLH) | 0.25 ns |
|---|---|
| Supply voltage range | +4.5 V to +5.5 V |
| Bandwidth (clock rate) | < 100 MHz |
| Package type | 56-pin TSSOP |
| Operating temperature range | 0°C to +70°C |
The device operates within a free-air temperature range of 0°C to +70°C.
The recommended minimum DC supply voltage is 4.5 V.
