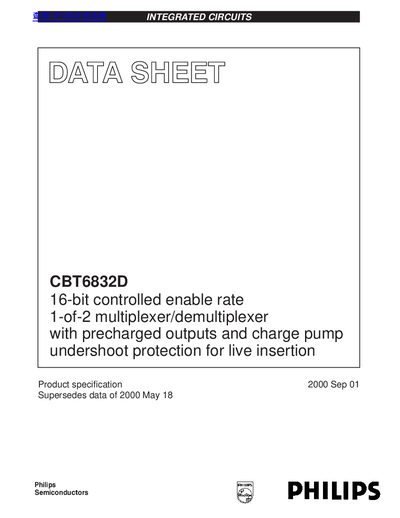

The CBT6832D is a 16-bit controlled enable rate 1-of-2 multiplexer/demultiplexer with precharged outputs and charge pump undershoot protection for live insertion.
The Philips CBT6832D is a 16-bit controlled enable rate 1-of-2 multiplexer/demultiplexer designed with precharged outputs and charge pump undershoot protection for live insertion. It features a propagation delay of 250 ps and supports a 100 MHz bandwidth at a 20 pF load capacitance. The device includes undershoot protection on the A port only, rated at -2.0 V.
| Bandwidth | 100 MHz |
|---|---|
| Operating voltage range | +4.5 V to +5.5 V |
| Undershoot protection | -2.0 V |
| Package type | 56-Pin Plastic TSSOP Type II |
| Operating temperature | 0°C to +70°C |
The device operates with a supply voltage between +4.5 V and +5.5 V.
The typical propagation delay is 250 ps.
The maximum DC output current in the low state is 120 mA.
