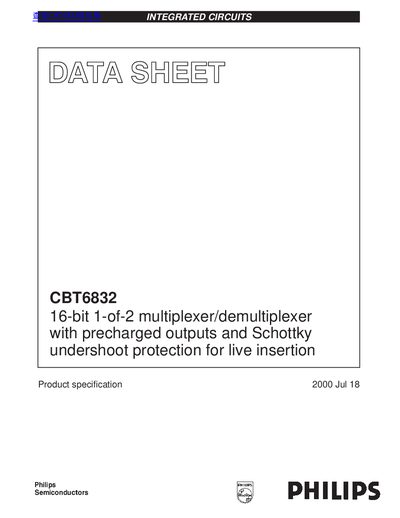

Philips CBT6832 16-bit Multiplexer/Demultiplexer Datasheet

The CBT6832 is a 16-bit 1:2 multiplexer/demultiplexer with precharged outputs and Schottky protection for live insertion from Philips Semiconductors.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 62 KB
Published: 06 July, 2012
Updated: 30 September, 2023
Model: CBT6832
MD5 checksum: 97DAA7CE8E51F4E24862BD4C00AA3BD9
PDF: Philips CBT6832 16-bit Multiplexer/Demultiplexer Datasheet PDF

About this manual

The Philips CBT6832 is a 16-bit 1-of-2 multiplexer/demultiplexer designed with precharged outputs and Schottky undershoot protection to support live insertion. It features a propagation delay of 250 ps and operates with a supply voltage range of +4.5 V to +5.5 V. The device is available in a 56-pin Plastic TSSOP Type II package.

What's inside

Features
Pin Configuration
Description
Absolute Maximum Ratings
DC Electrical Characteristics
AC Characteristics
Package Dimensions

Specifications

Bandwidth	100 MHz
Package type	56-pin Plastic TSSOP Type II
Operating temperature	0°C to +70°C

Frequently asked questions

What is the maximum operating temperature for the CBT6832?

The device operates within a free-air temperature range of 0°C to +70°C.

What is the maximum quiescent supply current?

The quiescent supply current is a maximum of 200 µA when the supply voltage is 5.5 V.

What is the maximum DC output current in the low state?

The device can handle a maximum DC output current of 120 mA when the output is in the low state.
