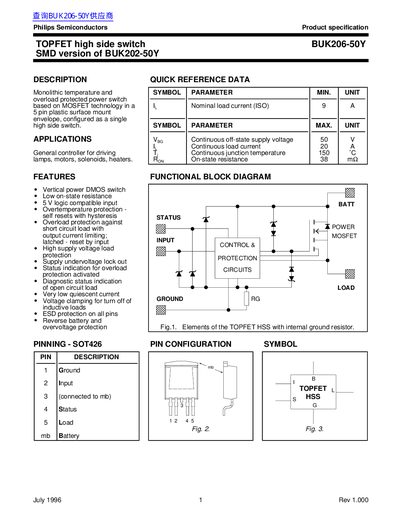

Philips BUK206-50Y TOPFET High Side Switch Datasheet
The document describes the Philips BUK206-50Y, an SMD version of the BUK202-50Y. It is a vertical power DMOS high side switch configured in a 5-pin plastic surface mount envelope (SOT426). The device features low on-state resistance and includes protection against overtemperature, overload short circuits, and supply undervoltage.
Key specifications include a nominal load current of 9 A with a continuous maximum of 20 A, and an off-state supply voltage rating up to 50 V. It is designed for driving lamps, motors, solenoids, and heaters in general controller applications.
Philips BUK206-50Y specifications
| Nominal load current (ISO) | 9 A |
|---|---|
| Continuous off-state supply voltage | 50 V |
| On-state resistance (typical) | 38 mΩ |
Source: Philips BUK206-50Y TOPFET High Side Switch Datasheet
All Philips BUK206-50Y documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for this switch?
It uses a 5 pin plastic surface mount envelope.
Is this device compatible with 5 V logic inputs?
Yes, it features 5 V logic compatible input.
Does the device have overtemperature protection?
Yes, it features overtemperature protection that self-resets with hysteresis.
What is the maximum continuous off-state supply voltage for this switch?
The maximum continuous off-state supply voltage is 50 V.
