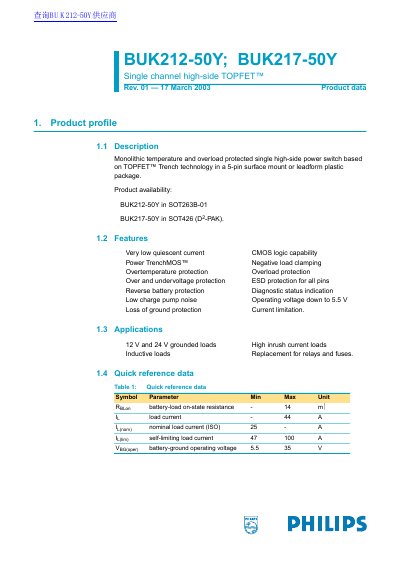

PHILIPS BUK208-50Y; BUK213-50Y handbook(1)
Datasheet 16 pages · 90 KB · EN
The document describes the BUK212-50Y and BUK217-50Y, which are monolithic temperature and overload protected single high-side power switches based on TOPFET Trench technology. These devices are available in SOT263B-01 or SOT426 (D 2-PAK) packages.
Read onlinePhilips BUK213-50Y specifications
| Battery-ground operating voltage (Min) | 5.5 V |
|---|---|
| Load current (Max) | 44 A |
| Self-limiting load current (Min) | 47 A |
| Battery-ground supply voltage (Max) | 50 V |
| Total power dissipation (Tmb≤25°C) (Max) | 115 W |
| Storage temperature range | -55 to +175 °C |
All Philips BUK213-50Y documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the nominal load current for ISO?
The nominal load current (ISO) ranges from 25 A to a maximum of 44 A.
Does this device have overtemperature protection?
Yes, the device includes overtemperature protection with a threshold junction temperature of 150°C to 190°C.
What are the available packages for these switches?
The BUK212-50Y is available in SOT263B-01, and the BUK217-50Y is available in SOT426 (D2-PAK).
What types of loads are these switches designed for?
They are intended for 12 V and 24 V grounded loads, including inductive loads.
