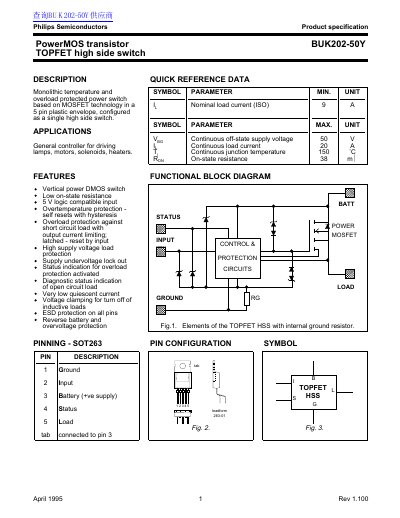

Philips BUK202-50Y PowerMOS Transistor Datasheet
Datasheet 13 pages · 125 KB · EN
This document is a product specification datasheet for the Philips BUK202-50Y, a monolithic temperature and overload protected PowerMOS transistor. The device is configured as a single high side switch in a 5-pin plastic envelope (SOT263) and is designed for driving lamps, motors, solenoids, and heaters.
Read onlinePhilips BUK202-50Y specifications
| Nominal load current | 9 A |
|---|---|
| Continuous off-state supply voltage | 50 V |
| Continuous load current | 20 A |
| Continuous junction temperature | 150 ˚C |
| On-state resistance | 38 m Ω |
All Philips BUK202-50Y documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the device have overtemperature protection?
Yes, it features overtemperature protection that self-resets with hysteresis.
What is the input turn-on threshold voltage?
The typical input turn-on threshold voltage is 2.7 V.
Does this switch include overtemperature protection?
Yes, it has overtemperature protection that self resets with hysteresis.
What is the maximum continuous off-state supply voltage for the BUK202-50Y?
The device supports a maximum continuous off-state supply voltage of 50 V.
