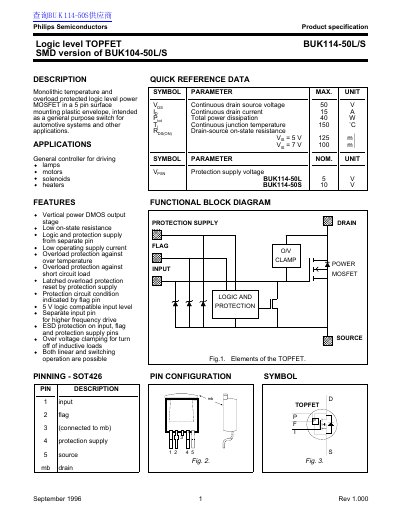

Philips BUK114-50L/S Logic Level TOPFET Product Specification Datasheet
The document describes the Philips BUK114-50L/S, an SMD version of the BUK104-50L/S designed as a general-purpose switch for automotive systems. It features a monolithic temperature and overload protected logic level power MOSFET in a 5-pin surface mounting plastic envelope.
Read onlinePhilips BUK114-50L specifications
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current (Tj=25°C) | 15 A |
| Total power dissipation | 40 W |
| Continuous junction temperature | 150 °C |
| Drain-source on-state resistance (Visg=7V) | 100 mΩ |
