BUK206-50Y is an overload protected power switch based on MOSFET technology, with low on-state resistance and 5V logic compatible input. It features overtemperature protection, overload protection, and supply undervoltage lock out. It is suitable for driving lamps, motors, solenoids, and heaters.

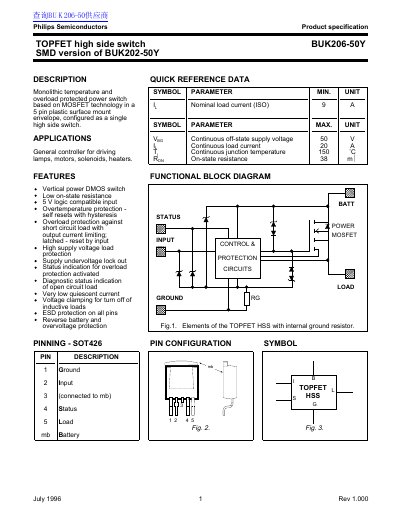

The Philips BUK206-50Y is a monolithic temperature and overload protected power switch based on MOSFET technology, available in a 5-pin plastic surface mount envelope. It is configured as a single high side switch designed for driving lamps, motors, solenoids, and heaters. This SMD version is an update to the BUK202-50Y.
| Nominal load current | 9 A |
|---|---|
| Continuous off-state supply voltage | 50 V |
| Continuous load current | 20 A |
| Continuous junction temperature | 150 °C |
| On-state resistance | 38 mΩ |
| Storage temperature | -55 to 175 °C |
Yes, it features overtemperature protection that self-resets with hysteresis.
The maximum continuous off-state supply voltage is 50 V.
The maximum continuous junction temperature is 150 °C.
