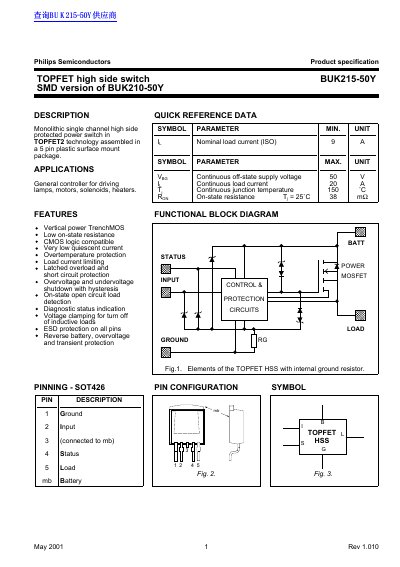

PHILIPS TOPFET high side switch BUK215-50Y SMD version of BUK210-50Y handbook
The document is a product specification for the Philips BUK215-50Y, a monolithic single-channel high-side switch assembled in a 5-pin plastic surface mount package (SOT426). It utilizes TOPFET2 technology to provide a nominal load current of 9 A with a low on-state resistance of 38 mΩ at 25°C. The device is designed for applications such as driving lamps, motors, solenoids, and heaters. This manual is written in Chinese.
Read onlinePhilips BUK210-50Y specifications
| Nominal load current | 9 A |
|---|---|
| Continuous off-state supply voltage | 50 V |
| Continuous load current | 20 A |
| Continuous junction temperature | 150 ˚C |
| On-state resistance (typical) | 38 mΩ |
| Package type | 5 pin plastic surface mountpackage |
Source: PHILIPS TOPFET high side switch BUK215-50Y SMD version of BUK210-50Y handbook
All Philips BUK210-50Y documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the nominal load current of the BUK215-50Y?
The nominal load current is 9 A according to ISO standards.
From: PHILIPS TOPFET high side switch BUK215-50Y SMD version of BUK210-50Y handbook
What is the maximum continuous junction temperature?
The device can operate continuously up to a junction temperature of 150 ˚C.
From: PHILIPS TOPFET high side switch BUK215-50Y SMD version of BUK210-50Y handbook
What is the continuous load current rating?
The continuous load current rating is 20 A.
What is the maximum continuous off-state supply voltage?
The maximum continuous off-state supply voltage is 50 V.
