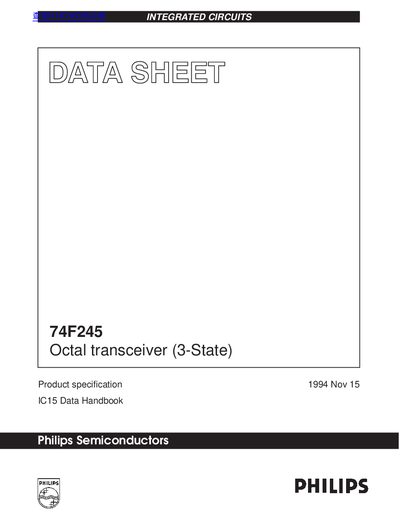

Philips 74F245 Octal Transceiver Datasheet
Datasheet 11 pages · 100 KB · EN
This document is a product specification datasheet for the Philips 74F245, an octal transceiver with non-inverting 3-State bus compatible outputs. The device features bidirectional data transfer capabilities with separate transmit and receive directions, allowing for easy cascading via an Output Enable input.
Read onlinePhilips 74F245 specifications
| Operating Temperature | 0 to +70 °C |
|---|---|
| Propagation Delay | 25 ns (Typical) |
| Output Source Current | 15 mA |
All Philips 74F245 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the OE input?
The OE input is an Output Enable input used for easy cascading of the device.
What does the TR input control?
The TR input controls the direction of data transfer between the two buses.
What is the function of the OE input?
The OE input is an Output Enable input that is active Low.
What is the operating temperature range for the 74F245?
The operating free-air temperature range is 0 to +70 °C.
