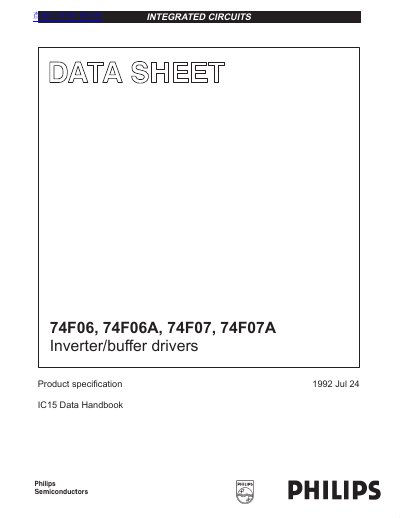

Philips 74F06/74F06A/74F07/74F07A Inverter/Buffer Drivers Datasheet
This document is a product specification datasheet for the Philips 74F06, 74F06A, 74F07, and 74F07A series of hex inverter/buffer drivers. These integrated circuits feature open-collector outputs designed for high-speed operation with symmetrical propagation delays. The series includes both standard and 'A' variants, with the 'A' versions offering improved performance upgrades and reduced leakage currents.
Read onlinePhilips 74F06 specifications
| Output Type | Open Collector |
|---|---|
| Supply Voltage | 0.5 to +7.0 V |
| Operating Temperature | 0 to +70 °C |
| Package Type | 14-pin plastic Dual In-line Package |
| Propagation Delay (74F06) | 3.5ns |
| Propagation Delay (74F06A) | 9.0ns |
| Propagation Delay (74F07) | 4.5ns |
Source: Philips 74F06/74F06A/74F07/74F07A Inverter/Buffer Drivers Datasheet
All Philips 74F06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output termination voltage for the 'A' series?
The maximum output termination voltage for the 74F06A and 74F07A is 30V.
From: Philips 74F06/74F06A/74F07/74F07A Inverter/Buffer Drivers Datasheet
What is the typical propagation delay for the 74F06?
The typical propagation delay for the 74F06 is 3.5ns.
